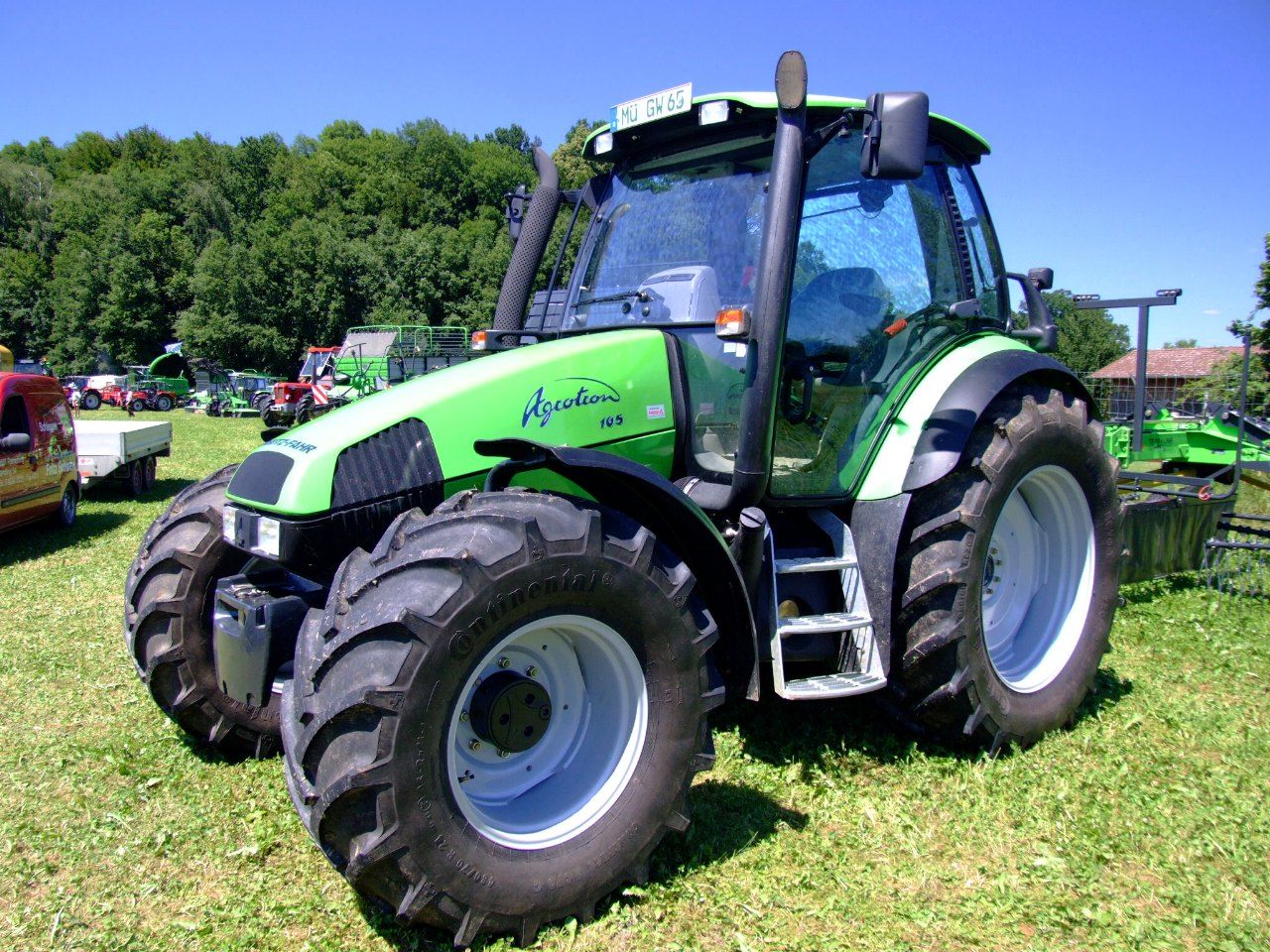

Deutz-Fahr Agrotron 105

Last Updated: June 2024

Overview

The Deutz-Fahr Agrotron 105 is a durable and powerful row food tractor with a 100 hp output. It features a turbocharged six-cylinder Deutz engine, which is liquid-cooled. Transmission is handled by a three-speed power shift system with 24 forward gears and 8 reverse gears. The tractor has a solid 4x4 MFWD 4WD chassis proving its strength in the field. It also has a sizeable wheelbase of 104.3 inches and an operating weight of 9922 lbs. The Agrotron 105 is ideal for demanding fieldwork and row cropping requirements.
Show more...

Key Specifications

Category: Row Crop

Power Output: 100

Transmission: Three-Speed Power Shift

Drive Type: 4WD

Operating Weight: 9922

Fuel Type: Diesel

Image Gallery

Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor Deutz-Fahr Agrotron 105 Tractor

Deutz-Fahr Agrotron 105 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Operating Weight
Average
Greater than 34% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
BF6M1012E
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
292.16
Bore (in)
3.7
Stroke (in)
4.52
Rated RPM
2300
Power Output (hp)
100

Transmission

Type
Three-Speed Power Shift
Forward Gears
24
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
172.1
Width (in)
-
Height (in)
111.4
Operating Weight (lb)
9922

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
