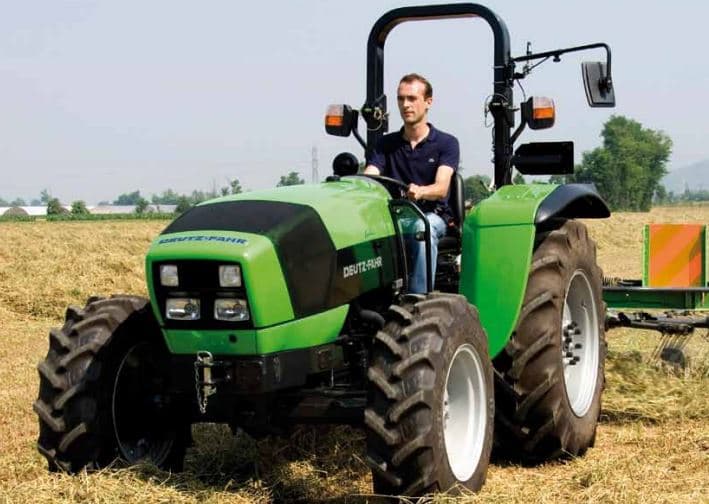

Deutz-Fahr Agrolux 75

Last Updated: June 2024

Overview

The Deutz-Fahr Agrolux 75 is a hard-working, utility tractor designed for versatile performance in a variety of applications. It features a SAME 1000.3, turbocharged diesel engine with 3 cylinders and a displacement of 183.1 ci. The Agrolux 75 is liquid-cooled and boasts a power output of 72 hp at 2200 RPM. It also has a maximum weight of 10,580 lbs and can operate on a variety of ground surfaces, with a solid ground clearance of 15.8 inches. The tractor is two-wheel drive with hydrostatic power steering and features partially synchronized transmission, offering 12 forward and 3 reverse gears. It rides on standard ag tires, with optional sizes available. The body of the tractor measures 130.5 inches in length, 78.2 inches in width, and 95.7 inches in height. The tractor's operations are facilitated by an open operator station. Further details regarding specific features like PTO type, brake type, and additional features were not available from the provided data.
Show more...

Key Specifications

Category: Utility

Power Output: 72

Transmission: Partially Synchronized

Drive Type: 2WD

Operating Weight: 5247

Fuel Type: Diesel

Deutz-Fahr Agrolux 75 vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.3
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
2200
Power Output (hp)
72

Transmission

Type
Partially Synchronized
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
130.5
Width (in)
78.2
Height (in)
95.7
Operating Weight (lb)
5247

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
6.1
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag Tires
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
