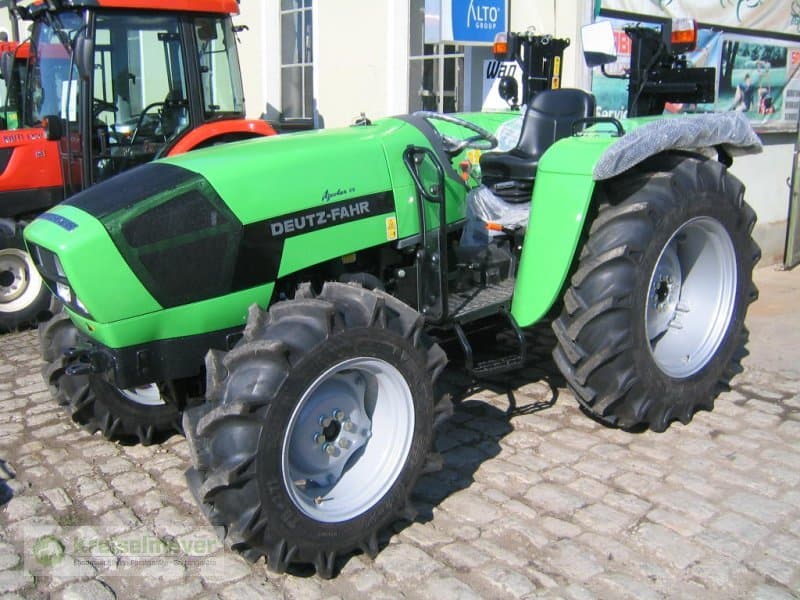

Deutz-Fahr Agrolux 65

Last Updated: June 2024

Overview

The Deutz-Fahr Agrolux 65 is a utility tractor designed for efficient and reliable performance. It features a 4x2 chassis and is powered by a 2WD drive type. Steering is made easy with a hydrostatic power system. The transmission on this model is 8-speed and partially synchronized, providing a seamless driving experience. The engine, made by SAME, is the 1000.3 model. This turbocharged, liquid-cooled diesel engine has three cylinders, a displacement of 183.1 cubic inches, and it outputs 62 horsepower at a rated RPM of 2200. For stability and traction, the Deutz-Fahr Agrolux 65 sports ag tires, with diameters of 16 inches in the front and 28 inches in the back. The tractor's dimensions are 130.5 inches in length, 77.5 inches in width, and 90.2 inches in height with ROPS. The operating weight is 5247 pounds. For the operator's convenience, the tractor is equipped with a category II hitch at the rear. The hydraulic system utilised is the open center type. Additional features to note are its Tier III emissions and the safety cartridge in the air cleaner.
Show more...

Key Specifications

Category: Utility

Power Output: 62

Transmission: Partially Synchronized

Drive Type: 2WD

Operating Weight: 5247

Fuel Type: Diesel

Deutz-Fahr Agrolux 65 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.3
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
2200
Power Output (hp)
62

Transmission

Type
Partially Synchronized
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
130.5
Width (in)
77.5
Height (in)
90.2 (with ROPS)
Operating Weight (lb)
5247

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
