Deutz-Fahr Agrokid 220

Last Updated: June 2024

Overview

The Deutz-Fahr Agrokid 220 is a compact utility tractor designed to handle a wide range of tasks. The tractor is equipped with a robust 4-cylinder, turbocharged diesel engine manufactured by Mitsubishi. This engine is liquid-cooled and capable of delivering 42.2 hp at 3000 RPM. The tractor comes with a versatile transmission system, offering a 12-speed shuttle and a creeper mode with 16 forward and reverse gears, suitable for various tasks requiring different speeds. The open center hydraulic system ensures efficient operation, and the power steering provides easy maneuverability.
Show more...

Key Specifications

Category: Utility

Power Output: 42.2

Transmission: Shuttle / Creeper

Drive Type: 4WD

Operating Weight: 2661 (ROPS), 3278 (Cab)

Fuel Type: Diesel

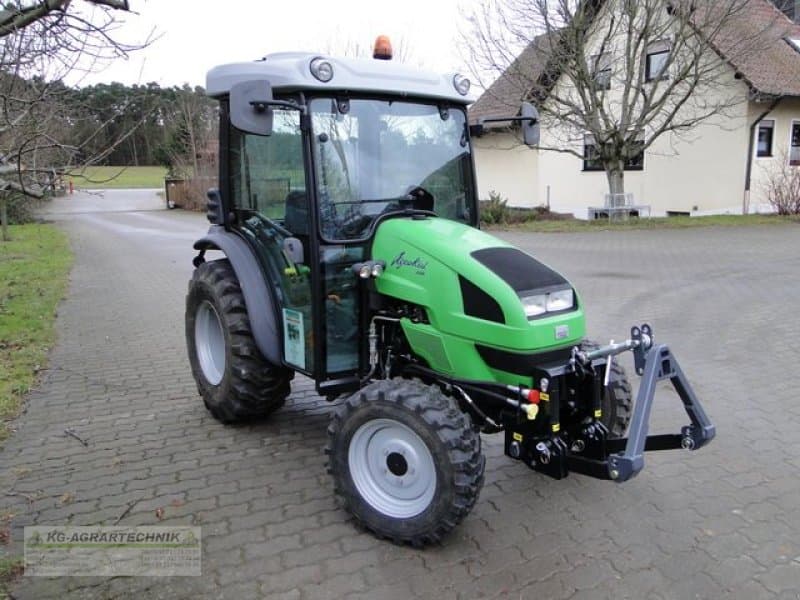

Image Gallery

Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor Deutz-Fahr Agrokid 220 Tractor

Deutz-Fahr Agrokid 220 vs. Similar Tractors

Power Output
Average
Greater than 39% of similar tractors.
Hitch Capacity
Above Average
Greater than 76% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
91.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
3000
Power Output (hp)
42.2

Transmission

Type
Shuttle / Creeper
Forward Gears
12 (16 with creeper)
Reverse Gears
12 (16 with creeper)
Total Gears
-

Dimensions

Length (in)
117.3
Width (in)
51
Height (in)
79.5 (ROPS), 86.4 (Cab)
Operating Weight (lb)
2661 (ROPS), 3278 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
5070 lbs
Operator Station Type
Optional (ROPS, Cab)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
