Deutz-Fahr 9340 TTV

Last Updated: June 2024

Overview

The Deutz-Fahr 9340 TTV is a robust Row-Crop Tractor with a powerful Deutz TCD 7.8 L06, 6-cylinder, turbocharged intercooled diesel engine. This engine provides a displacement of 474.5 ci and produces an impressive 316 hp at the rated RPM of 2100. The tractor features a 4x4 MFWD 4WD wheel setup and power steering, making it very maneuverable even on formidable terrains. At 207.4 inches in length, 100.4 inches in width, and 137.8 inches in height, the 9340 TTV strikes a good balance between size and power. It weighs around 26,455 lbs, showcasing its resilience and capacity to handle heavy-duty tasks with ease. The tractor employs a closed center load sensing hydraulic system.
Show more...

Key Specifications

Category: Row Crop

Power Output: 316

Drive Type: 4WD

Operating Weight: 26455

Fuel Type: Diesel

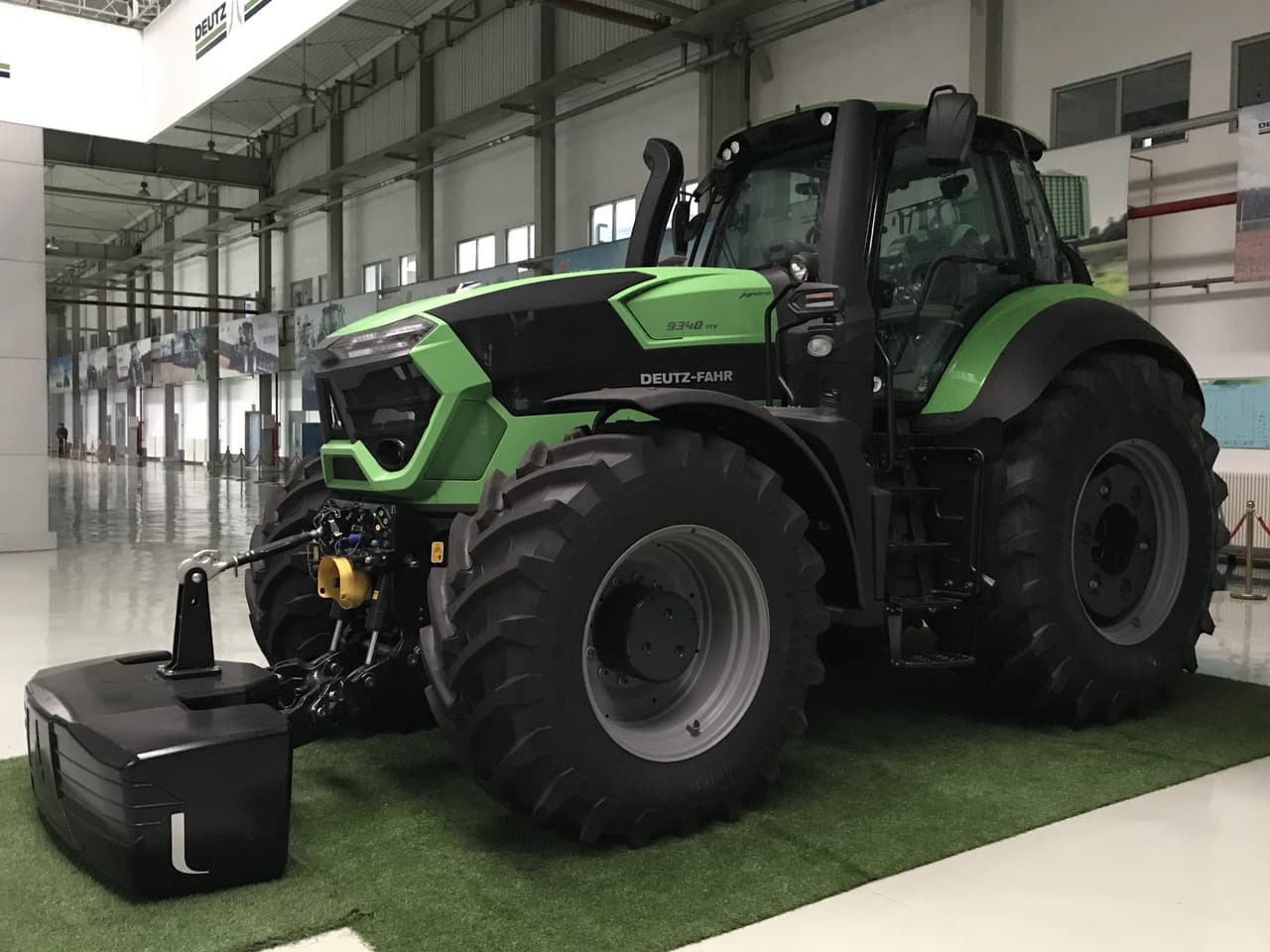

Image Gallery

Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor Deutz-Fahr 9340 TTV Tractor

Deutz-Fahr 9340 TTV vs. Similar Tractors

Power Output
Above Average
Greater than 89% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
Deutz TCD 7.8 L06
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
474.5
Bore (in)
4.33
Stroke (in)
5.35
Rated RPM
2100
Power Output (hp)
316

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
207.4
Width (in)
100.4
Height (in)
137.8
Operating Weight (lb)
26455

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center load sensing
