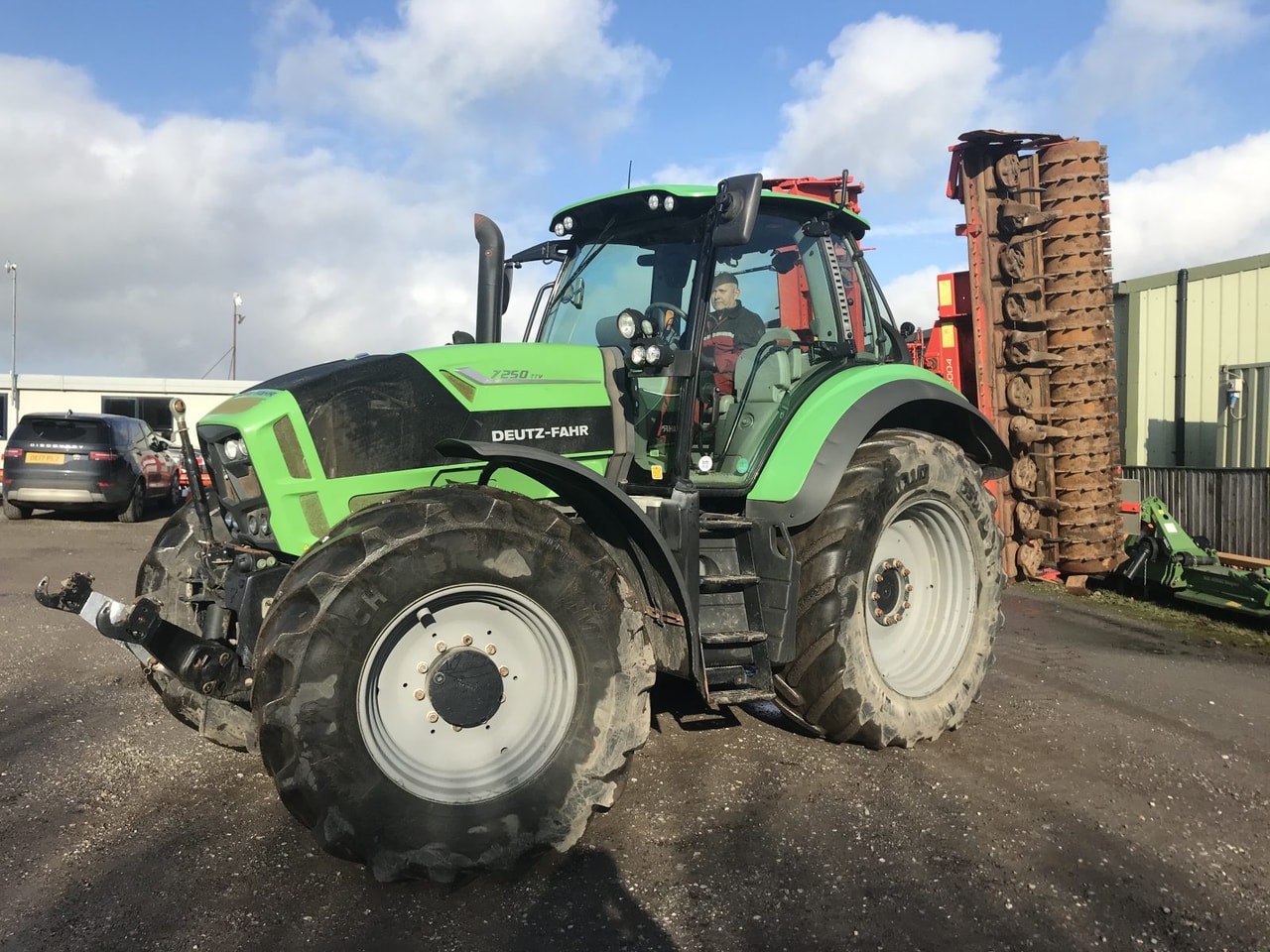

Deutz-Fahr 7250 TTV

Last Updated: June 2024

Overview

The Deutz-Fahr 7250 TTV is a high-performance Row-Crop tractor designed for heavy-duty farming applications. It comes equipped with a powerful 6-cylinder, 369.6 ci turbocharged and intercooled diesel engine that delivers between 236 and 238 horsepower at a rated RPM of 2100. This tractor operates with a 4x4 MFWD 4WD chassis and Power Steering for easy maneuverability. With an impressive weight capacity of over 20062 lbs, and dimensions of 195.8 inches in length, 98.4 inches in width, and an overall height of 124.1 inches, this model is built to handle large and demanding tasks. An effective load-sensing hydraulic system greatly enhances the tractor's performance. The Deutz-Fahr 7250 TTV offers a comfortable cab-style operator station, providing protection and visibility for the operator.
Show more...

Key Specifications

Category: Row Crop

Power Output: 236 - 238

Drive Type: 4WD

Operating Weight: 20062

Fuel Type: Diesel

Deutz-Fahr 7250 TTV vs. Similar Tractors

Power Output
Excellent
Greater than 96% of similar tractors.
Operating Weight
Above Average
Greater than 71% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
TCD 6.1 L06 4V
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged, Intercooled
Cylinders
6
Displacement (ci)
369.6
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
236 - 238

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
195.8
Width (in)
98.4
Height (in)
124.1
Operating Weight (lb)
20062

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Load Sensing
