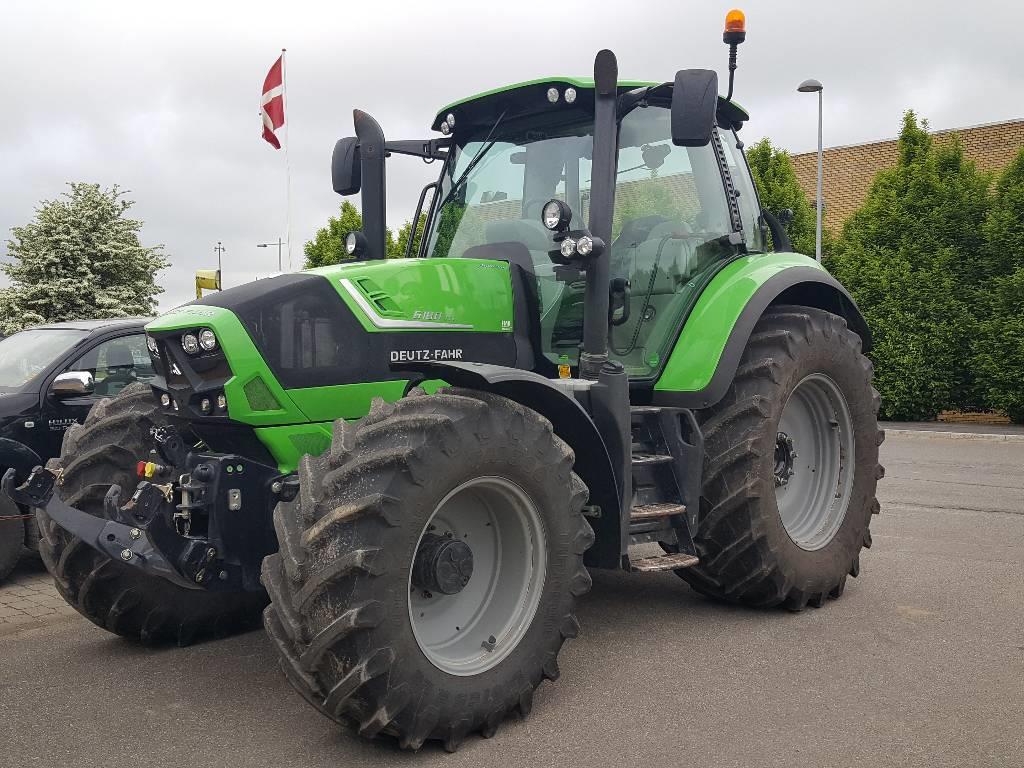

Deutz-Fahr 6180 TTV

Last Updated: September 2024

Overview

The Deutz-Fahr 6180 TTV is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that puts out 165 horsepower, which is above average for tractors in its class. The engine is turbocharged and intercooled, helping it run efficiently. This tractor is designed for heavy-duty work, weighing in at a very high 23,149 pounds.

The 6180 TTV comes with four-wheel drive and power steering, making it easy to handle in tough field conditions. It has a comfortable cab for the operator and runs on big agricultural tires. The tractor is quite large, measuring 187.3 inches long, 100.4 inches wide, and 118.5 inches tall. Deutz-Fahr, a well-known German tractor maker, built this machine with farmers' needs in mind. It has a load-sensing transmission and an electric starter for smooth operation.
Show more...

Key Specifications

Category: Row Crop

Power Output: 165 hp (123.0 kW)

Transmission: Load sensing

Drive Type: 4WD

Operating Weight: 23149 lb (10500 kg)

Fuel Type: Diesel

Deutz-Fahr 6180 TTV vs. Similar Tractors

Power Output

The Power Output for the Deutz-Fahr 6180 TTV is Average. It is greater than 64% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the Deutz-Fahr 6180 TTV is Excellent. It is greater than 92% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Deutz-Fahr 6180 TTV is Average. It is greater than 46% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Deutz-Fahr 6180 TTV is Below Average. It is greater than 28% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
TCD 6.1 L06 4V
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement
370 ci (6.1 L)
Bore
3.98 in (101.1 mm)
Stroke
4.96 in (126.0 mm)
Rated RPM
2100
Power Output
165 hp (123.0 kW)

Transmission

Type
Load sensing

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
