Deutz-Fahr 5120

Last Updated: June 2024

Overview

The Deutz-Fahr 5120 is a versatile utility tractor which was manufactured from 2013-2017. This model is known for its powerful 4-cylinder turbocharged intercooled diesel engine, delivering up to 116.7 hp at 2200 RPM. The engine model TCD 3.6 L04 is from the Deutz manufacturer. The tractor comes equipped with three transmission systems, including a 30-speed and 60-speed partial power shift and an infinitely variable transmission. This implies high versatility for different tasks. The 5120 model features a 4x4 MFWD 4WD chassis, power steering, and an electric starter. However, some specifications like PTO type, hydraulic system type, and brake type aren't declared.

Key Specifications

Category: Utility

Power Output: 111.3 (rated power); 116.7 (maximum power)

Transmission: 30-speed partial power shift / 60-speed partial power shift / infinitely variable transmission (Three different systems noted - ambiguity present)

Drive Type: 4WD

Operating Weight: 10957-11288

Fuel Type: Diesel

Image Gallery

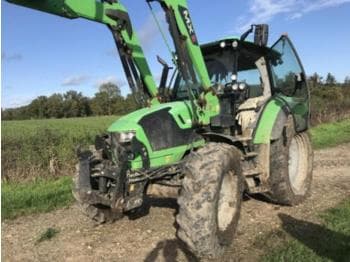

Deutz-Fahr 5120 Tractor

Deutz-Fahr 5120 vs. Similar Tractors

Operating Weight

Excellent

Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz
Model: TCD 3.6 L04
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 4
Displacement (ci): 220.9
Bore (in): 3.86
Stroke (in): 4.72
Rated RPM: 2200
Power Output (hp): 111.3 (rated power); 116.7 (maximum power)

Transmission

Type: 30-speed partial power shift / 60-speed partial power shift / infinitely variable transmission (Three different systems noted - ambiguity present)
Forward Gears: -
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 168.1
Width (in): 90.1
Height (in): 108.9
Operating Weight (lb): 10957-11288

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard Ag
Manufacture - End Year: 2017
Hitch Type: Rear Type II
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
