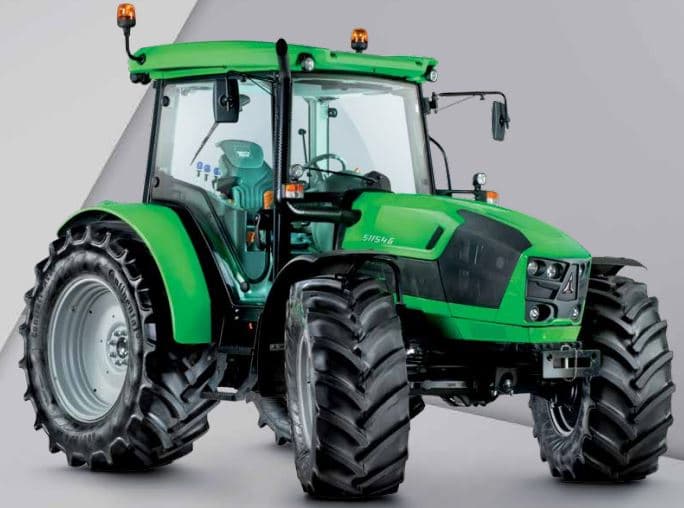

Deutz-Fahr 5115

Last Updated: September 2024

Overview

The Deutz-Fahr 5115 is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine that makes 111.3 hp, which is very high for its class. The engine is turbocharged and intercooled, giving it extra power when needed. This tractor can handle big jobs with ease.

The 5115 has a 4-wheel drive system and power steering, making it easy to control in all kinds of fields. Its transmission has 20 forward and 20 reverse gears, letting you pick the right speed for any task. The tractor is big and sturdy, weighing 9,921 lb, but not too big to use in smaller spaces. It has an open center hydraulic system and a category II hitch, so it can work with many different tools. Made since 2017, this Deutz-Fahr model combines modern features with reliable design.
Show more...

Key Specifications

Category: Utility

Power Output: 111 hp (83.0 kW)

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 9921 lb (4500 kg)

Fuel Type: Diesel

Deutz-Fahr 5115 vs. Similar Tractors

Power Output

The Power Output for the Deutz-Fahr 5115 is Above Average. It is greater than 87% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Deutz-Fahr 5115 is Above Average. It is greater than 86% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Deutz-Fahr 5115 is Average. It is greater than 64% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Deutz-Fahr 5115 is Poor. It is greater than 9% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Deutz-Fahr
Model
TCD 3.6 L04
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged Intercooled
Cylinders
4
Displacement
221 ci (3.6 L)
Bore
3.86 in (98.0 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2000
Power Output
111 hp (83.0 kW)

Transmission

Type
Partial power shift
Forward Gears
20
Reverse Gears
20

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
