Deutz-Fahr 5100

Last Updated: June 2024

Overview

The Deutz-Fahr 5100 is a reliable utility tractor that was manufactured between the years 2013 and 2017. This model features a powerful 93.2 horsepower liquid-cooled 4-cylinder engine provided by Deutz. The tractor is equipped with a turbocharged intercooled diesel engine and a power steering system for easy operation. It comes with a 30-speed partial power shift transmission that offers equal gears for both forward and reverse operations. With a 4x4 MFWD 4WD chassis, this tractor can tackle a variety of terrains with ease. It is designed to have a maximum operating weight of around 10031 lbs. The tractor measures 168.1 inches in length, 87 inches in width, and 76.6 inches in height, making it suitable for various heavy-duty tasks. In addition, it comes with a comfortable cab-style operator station that is suited for long hours of work.

Key Specifications

Category: Utility

Power Output: 93.2

Transmission: Partial Power Shift / ZF TTV

Drive Type: 4WD

Operating Weight: 10031

Fuel Type: Diesel

Image Gallery

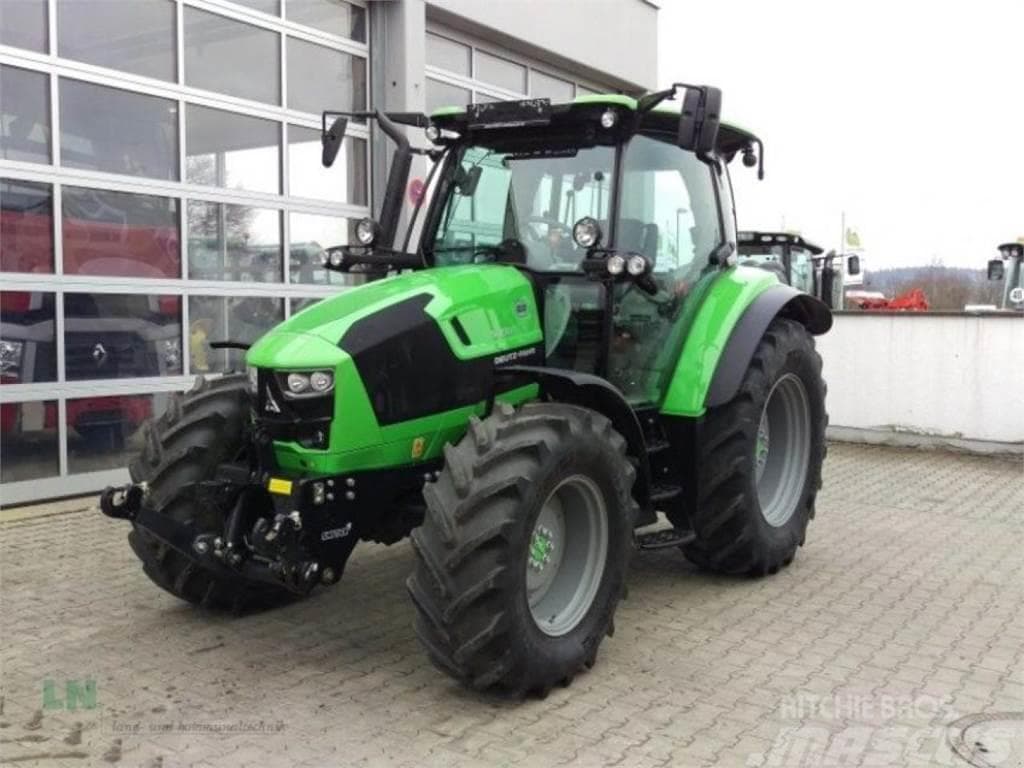

Deutz-Fahr 5100 Tractor

Deutz-Fahr 5100 vs. Similar Tractors

Power Output

Above Average

Greater than 78% of similar tractors.

Operating Weight

Average

Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz-Fahr
Model: TCD 3.6 L04
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged (Intercooled)
Cylinders: 4
Displacement (ci): 220.9
Bore (in): 3.86
Stroke (in): 4.72
Rated RPM: 2200
Power Output (hp): 93.2

Transmission

Type: Partial Power Shift / ZF TTV
Forward Gears: 30
Reverse Gears: 30
Total Gears: -

Dimensions

Length (in): 168.1
Width (in): 87
Height (in): 76.6
Operating Weight (lb): 10031

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 16.53
Rear Tire Diameter (in): -
Rear Tire Width (in): 18.89
Front/Rear Rim Diameter (in): -
Tire Type: Standard
Manufacture - End Year: 2017
Hitch Type: -
Hitch Category: II
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
