Deutz-Fahr 4090E

Last Updated: June 2024

Overview

The Deutz-Fahr 4090E is a utility tractor designed for efficiency and reliability. It has a powerful 3-cylinder, turbocharged intercooled diesel SDF FARMotion KD3TA engine with a liquid-cooled inline setup. With a power output of 82.6 hp, 176.2 ci engine displacement, and rated at 2200 RPM, this tractor offers a good balance of power and fuel efficiency. It features a 4WD chassis, power steering, and 15-speed partially synchronized transmission, designed for seamless shifts and better control. The open center hydraulic system used in the Deutz-Fahr 4090E contributes to its operation reliability. This model comes with standard ag tires with a front diameter of 20 inches and a rear diameter of 30 inches. The tractor's structural dimensions measure 152 inches in length and 71.8 inches in width, and it weighs in at 6614 pounds.

Key Specifications

Category: Utility

Power Output: 82.6

Transmission: Partially synchronized

Drive Type: 4WD

Operating Weight: 6614

Fuel Type: Diesel

Image Gallery

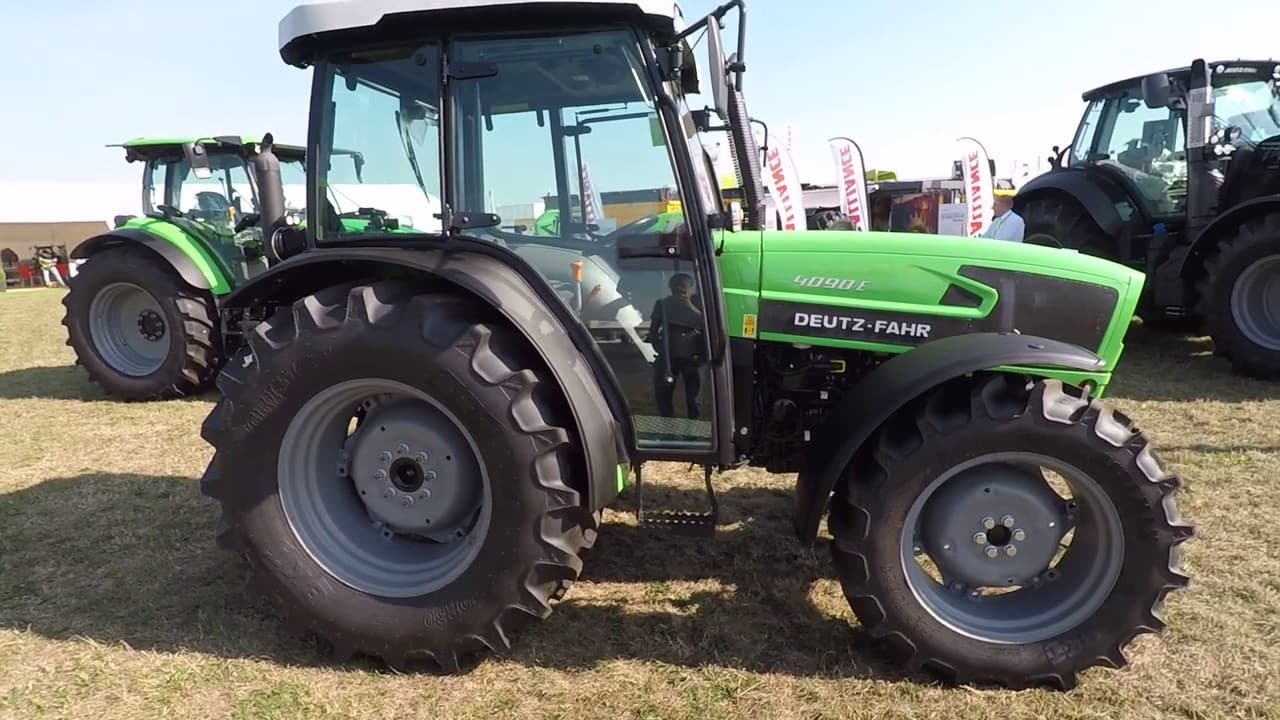

Deutz-Fahr 4090E Tractor

Deutz-Fahr 4090E vs. Similar Tractors

Power Output

Above Average

Greater than 72% of similar tractors.

Operating Weight

Average

Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer: SDF
Model: FARMotion KD3TA
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged intercooled
Cylinders: 3
Displacement (ci): 176.2
Bore (in): 4.06
Stroke (in): 4.53
Rated RPM: 2200
Power Output (hp): 82.6

Transmission

Type: Partially synchronized
Forward Gears: 15
Reverse Gears: 15
Total Gears: -

Dimensions

Length (in): 152
Width (in): 71.8
Height (in): -
Operating Weight (lb): 6614

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 20
Front Tire Width (in): -
Rear Tire Diameter (in): 30
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
