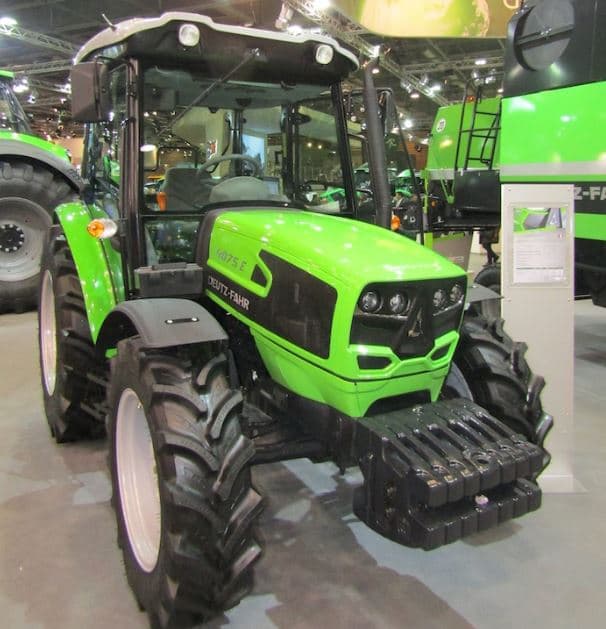

Deutz-Fahr 4075E

Last Updated: June 2024

Key Specifications

Category: Utility

Power Output: 71.1

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: Between 5952 to 6945 (Does vary depending on Cab type and Wheel Drive type)

Fuel Type: Diesel

Image Gallery

Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor Deutz-Fahr 4075E Tractor

Deutz-Fahr 4075E vs. Similar Tractors

Power Output
Average
Greater than 65% of similar tractors.
Hitch Capacity
Excellent
Greater than 91% of similar tractors.
Operating Weight
Above Average
Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer
SDF
Model
1000.3 WTI
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged, Intercooled
Cylinders
3
Displacement (ci)
183.1
Bore (in)
4.13
Stroke (in)
4.56
Rated RPM
-
Power Output (hp)
71.1

Transmission

Type
Partially synchronized
Forward Gears
30
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
-
Width (in)
69.8
Height (in)
-
Operating Weight (lb)
Between 5952 to 6945 (Does vary depending on Cab type and Wheel Drive type)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
2WD: 8378 lbs, 4WD: 10582 lbs
Operator Station Type
Open/Cab (Both Options available)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
