Deutz F1L612

Last Updated: June 2024

Overview

The Deutz F1L612 is a compact and reliable tractor, perfect for various tasks. It is equipped with a 1-cylinder, air-cooled Deutz diesel engine capable of generating up to 10.8 horsepower and is operated with a 6-speed gear transmission. With a weight of 1830 pounds, it provides stable ground contact and handling. The model comes with a manual steering system which gives the driver full control. Despite its small size, the tractor does not compromise on power and efficiency making it versatile for all needs.

Key Specifications

Power Output: 10.8

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1830

Fuel Type: Diesel

Image Gallery

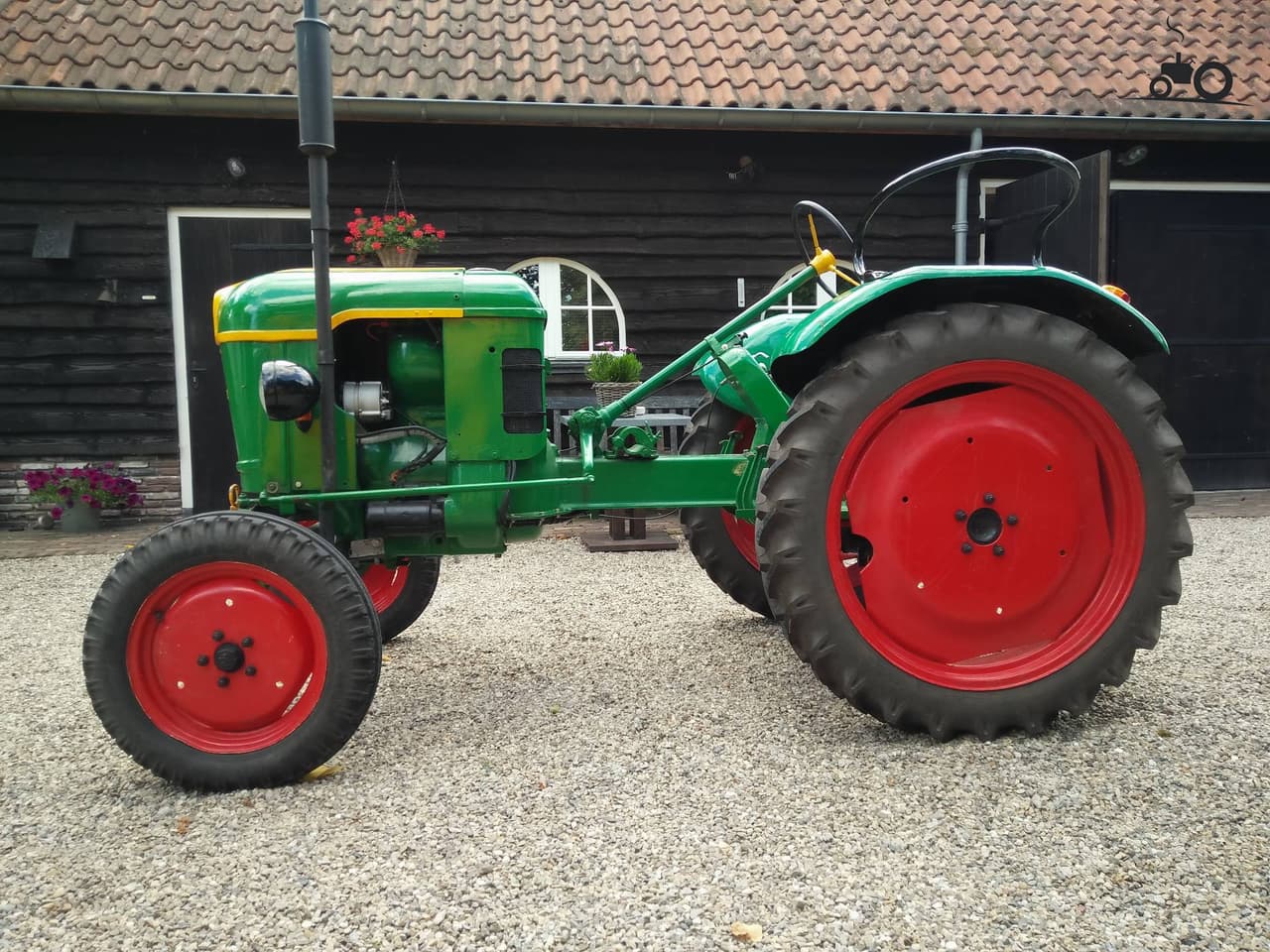

Deutz F1L612 Tractor

Technical Specifications

Engine

Manufacturer: Deutz
Model: -
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assumed based on lack of mention of turbocharging)
Cylinders: 1
Displacement (ci): 46.6
Bore (in): 3.54
Stroke (in): 4.72
Rated RPM: 2100
Power Output (hp): 10.8

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 105.1
Width (in): 56.1
Height (in): 55.1
Operating Weight (lb): 1830

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag tires
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
