Deutz D 7206

Last Updated: June 2024

Overview

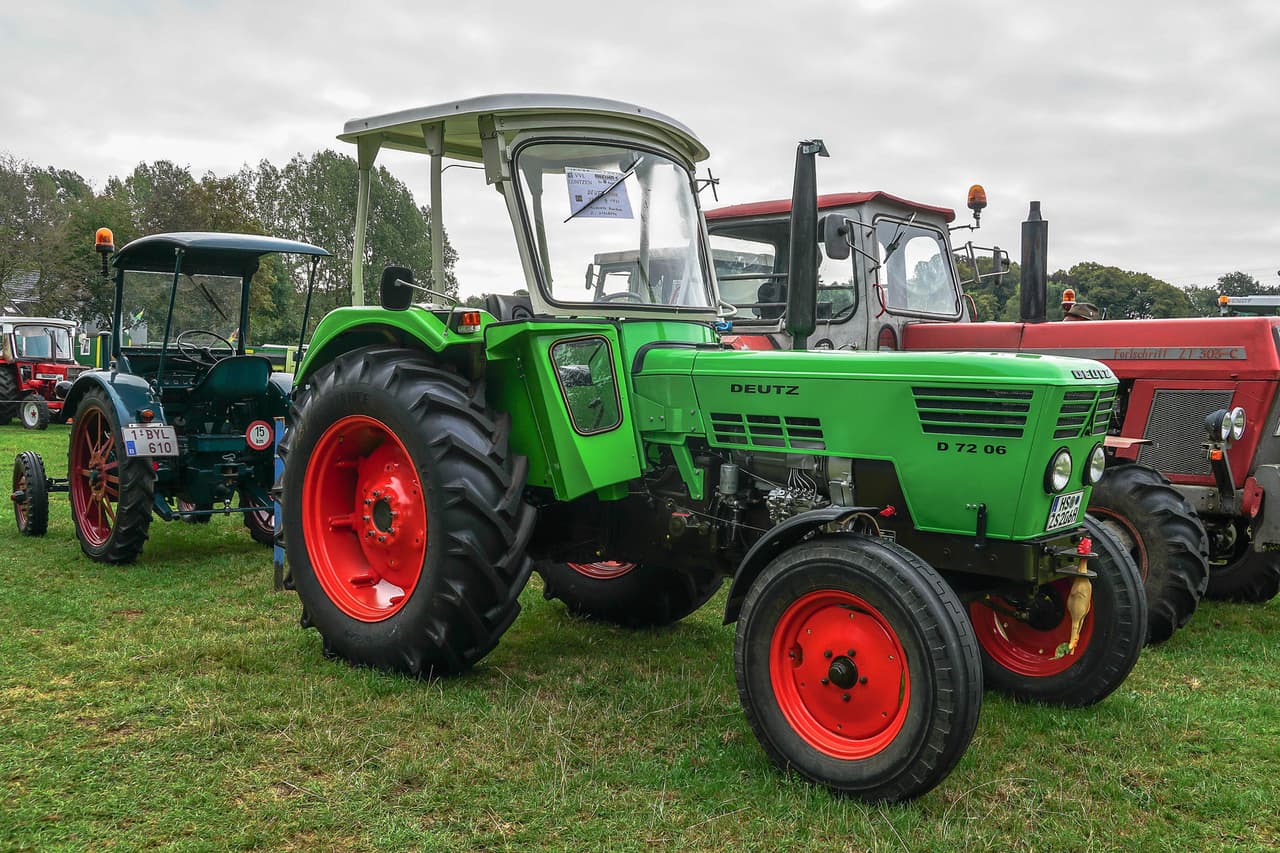

The Deutz D 7206 is a robust, air-cooled diesel tractor that brings a good balance of power and versatility. Its 70 horsepower engine is manufactured by Deutz and boasts a 4-cylinder configuration. The 2WD chassis of the D 7206 paired with an 8-speed Synchromesh transmission (12 with creeper) makes it easy to tackle a variety of terrains and tasks. The tractor measures 156 inches in length, 77 inches in width, and stands at a height of 107 inches with ROPS. Providing an operating weight of 6220 lbs for the 2WD and 7340 lbs for the 4WD, it gives a sense of reliability to the operator.
Show more...

Key Specifications

Power Output: 70

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 6220 (2WD), 7340 (4WD)

Fuel Type: Diesel

Image Gallery

Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor Deutz D 7206 Tractor

Technical Specifications

Engine

Manufacturer
Deutz
Model
F4L 912
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
230.05
Bore (in)
3.94
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
70

Transmission

Type
Synchromesh
Forward Gears
8 (12 with creeper)
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
156
Width (in)
77
Height (in)
107
Operating Weight (lb)
6220 (2WD), 7340 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
