Deutz D 5505

Last Updated: June 2024

Key Specifications

Category: Row Crop

Power Output: 51.3

Transmission: Gear

Drive Type: 2WD

Operating Weight: 5423

Fuel Type: Diesel

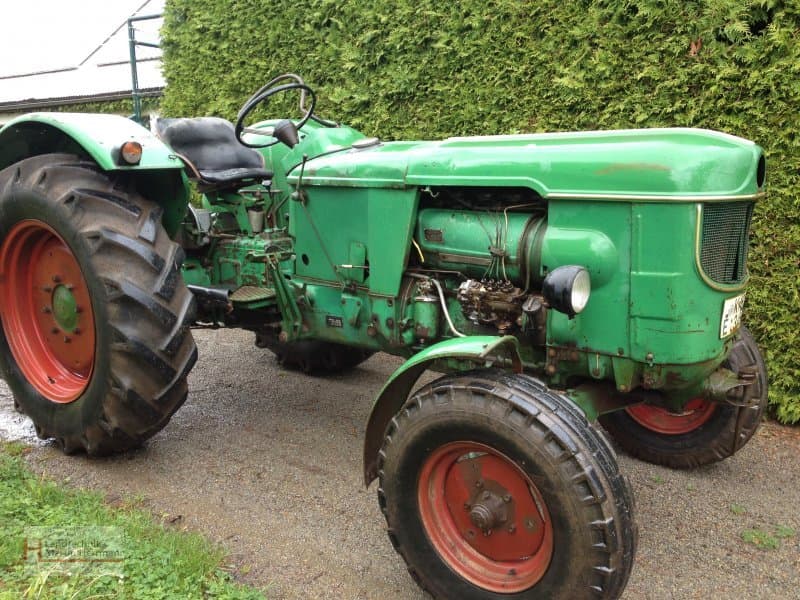

Image Gallery

Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor Deutz D 5505 Tractor

Deutz D 5505 vs. Similar Tractors

Power Output
Poor
Greater than 5% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
F4L 812
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
207.5
Bore (in)
3.74
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
51.3

Transmission

Type
Gear
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
146.9
Width (in)
70.9
Height (in)
96.5 (With Cab)
Operating Weight (lb)
5423

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
19
Front Tire Width (in)
6
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
