Deutz D 4006

Last Updated: June 2024

Overview

The Deutz D 4006 is a utility tractor part of the 06 series, manufactured by Deutz from 1968 to 1981. It is available as a 2WD or a 4WD model, with manual or hydraulic power steering respectively. The tractor operates with an efficient and robust Deutz F3L 912 diesel engine. It features an air-cooled 3-cylinder inline configuration and a displacement of 172.5 ci. The engine delivers 35 horsepower, with a rated RPM of 2150. The tractor comes with a Synchromesh transmission, configured with 12 forward gears and 4 reverse gears. It has an impressive hitch lift capacity of 3440 lbs and can accommodate optional ROPS or Cab attachments. With an operating weight between 4498 lbs (2WD) and 5005 lbs (4WD), it is versatile for a range of operations.

Key Specifications

Category: Utility

Power Output: 35

Transmission: Synchromesh (optional for D4006A – 4WD)

Drive Type: 2WD and 4WD

Operating Weight: 4498 (2WD) 5005 (4WD)

Fuel Type: Diesel

Image Gallery

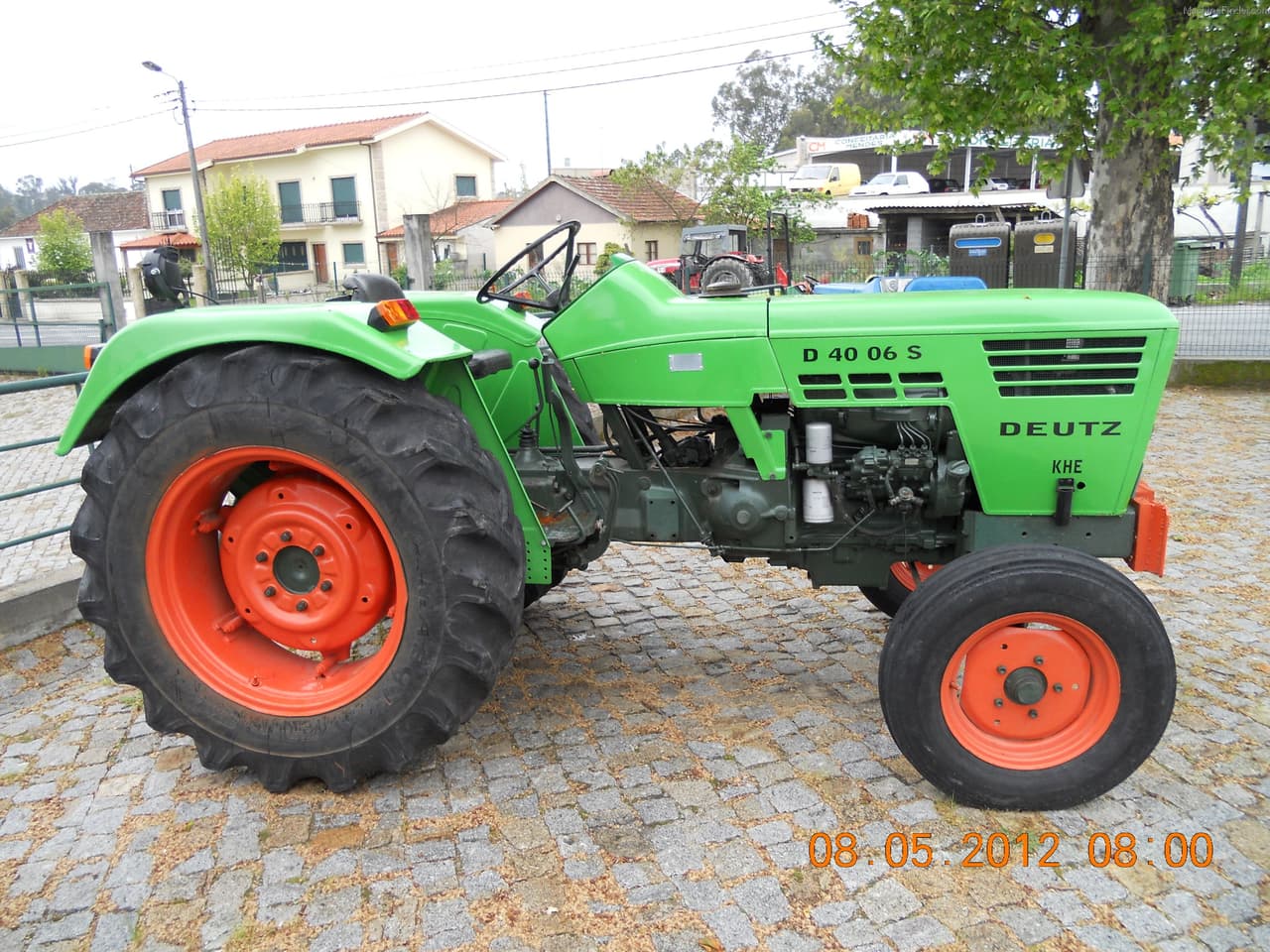

Deutz D 4006 Tractor

Deutz D 4006 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Hitch Capacity

Average

Greater than 63% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz
Model: F3L 912
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 172.5
Bore (in): 3.94
Stroke (in): 4.72
Rated RPM: 2150
Power Output (hp): 35

Transmission

Type: Synchromesh (optional for D4006A – 4WD)
Forward Gears: 12 (3 variants)
Reverse Gears: 4 (highest variant)
Total Gears: -

Dimensions

Length (in): 134.6
Width (in): -
Height (in): -
Operating Weight (lb): 4498 (2WD) 5005 (4WD)

Power Take-Off (PTO)

PTO Type: Live or Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD and 4WD
Steering Type: Manual (2WD) and Hydraulic power (4WD)
Coolant Capacity (qts): -
Front Tire Diameter (in): 6.5
Front Tire Width (in): 16
Rear Tire Diameter (in): 12.4
Rear Tire Width (in): 32
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1981
Hitch Type: -
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 3440 lbs
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
