Deutz D 2505

Last Updated: June 2024

Overview

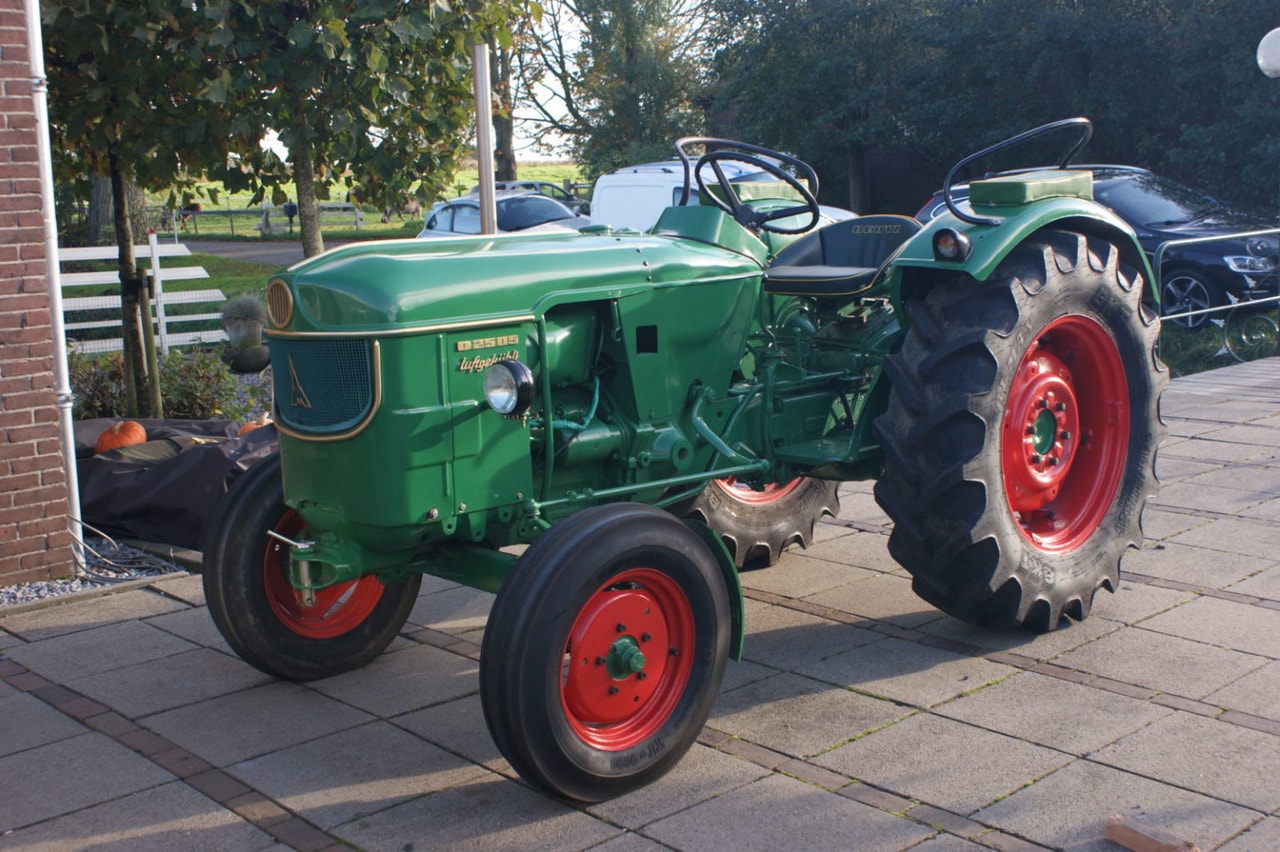

The Deutz D 2505 tractor is a robust and reliable machine. Featuring a 2-cylinder Deutz diesel engine, it offers 22 horsepower with a rated RPM of 1900. The tractor comes with a manual 10-speed transmission system, providing 8 gears in forward direction and 2 gears in reverse. It has a 4x2 2WD chassis configuration, making it ideal for a variety of ground conditions. With a weight of 3417 lbs, this tractor assures stability in diverse farming tasks. It has a length of 129.53 inches and a height of 62.60 inches, providing a substantial size for differing farming applications.
Show more...

Key Specifications

Power Output: 22

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3417

Fuel Type: Diesel

Image Gallery

Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor Deutz D 2505 Tractor

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
2
Displacement (ci)
103.73
Bore (in)
3.74
Stroke (in)
4.72
Rated RPM
1900
Power Output (hp)
22

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
129.53
Width (in)
-
Height (in)
62.6
Operating Weight (lb)
3417

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
5.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
