Deutz D 15

Last Updated: June 2024

Overview

The Deutz D 15 is a compact, durable tractor powered by a Deutz F1L712 diesel engine. This engine is capable of delivering 14 horsepower and features air-cooled technology. The transmission of the tractor comprises of gear type with 6 forward and 2 reverse gears, enhancing its utility in various farming tasks. The Deutz D 15 has a steady wheelbase of 66.5 inches, ensuring stability in operation. Its overall dimensions and weight make it robust yet maneuverable, measuring 104 inches in length, 61 inches in width, and 58.7 inches in height, and weighing in at 2030 lbs. This tractor features agricultural tires and a rear Type I hitch, aiding its versatility across different agricultural applications.

Key Specifications

Power Output: 14

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2030

Fuel Type: Diesel

Image Gallery

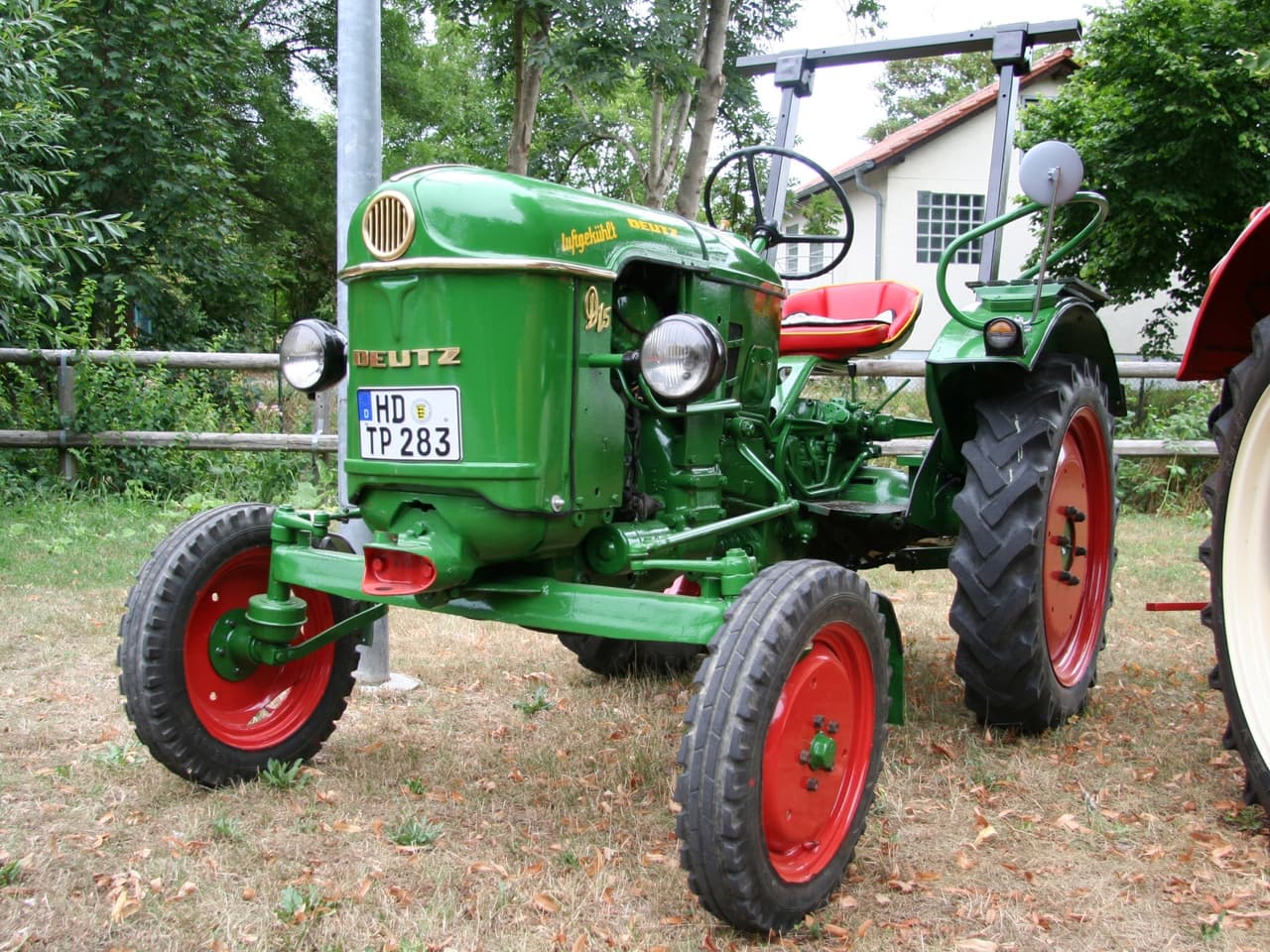

Deutz D 15 Tractor

Technical Specifications

Engine

Manufacturer: Deutz
Model: F1L712
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 1
Displacement (ci): 51.8
Bore (in): 3.74
Stroke (in): 4.72
Rated RPM: 2400
Power Output (hp): 14

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 104
Width (in): 61
Height (in): 58.7
Operating Weight (lb): 2030

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
