Deutz D 10006

Last Updated: June 2024

Overview

The Deutz D 10006 tractor is a reliable piece of machinery equipped with a Deutz F6L 912 engine. This engine is powered by diesel, producing up to 100 horsepower, and is air-cooled. Paired with the engine is a 12-speed manual transmission system, providing smooth operation across a variety of terrains. The tractor sits on a 4x2 2WD chassis, featuring power steering for precise control. It comes with an impressive wheelbase length of 100.39 inches. The weight of the tractor varies depending on the drive type, with 2WD operating weight coming in at 8298 lbs, and 4WD configuration weighing in at 9256 lbs.

Key Specifications

Power Output: 100

Transmission: Manual

Drive Type: 2WD

Operating Weight: 8298 (2WD), 9256 (4WD)

Fuel Type: Diesel

Image Gallery

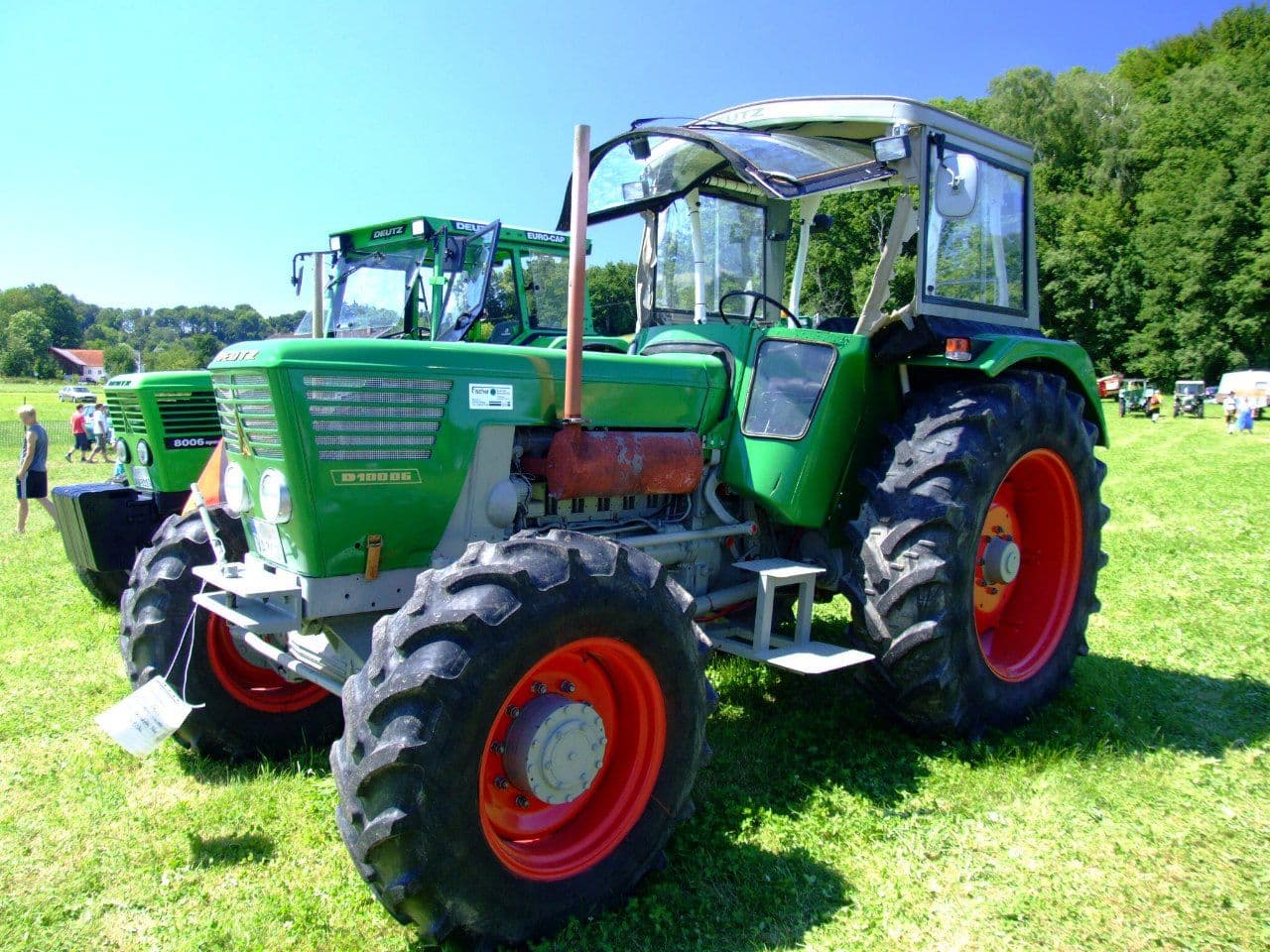

Deutz D 10006 Tractor

Technical Specifications

Engine

Manufacturer: Deutz
Model: F6L 912
Cooling Type: Air
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (Assumption)
Cylinders: 6
Displacement (ci): 344.9
Bore (in): 3.937
Stroke (in): 4.72
Rated RPM: 2300
Power Output (hp): 100

Transmission

Type: Manual
Forward Gears: 12
Reverse Gears: 6 and 7 (discrepancy)
Total Gears: -

Dimensions

Length (in): 165.4
Width (in): -
Height (in): -
Operating Weight (lb): 8298 (2WD), 9256 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
