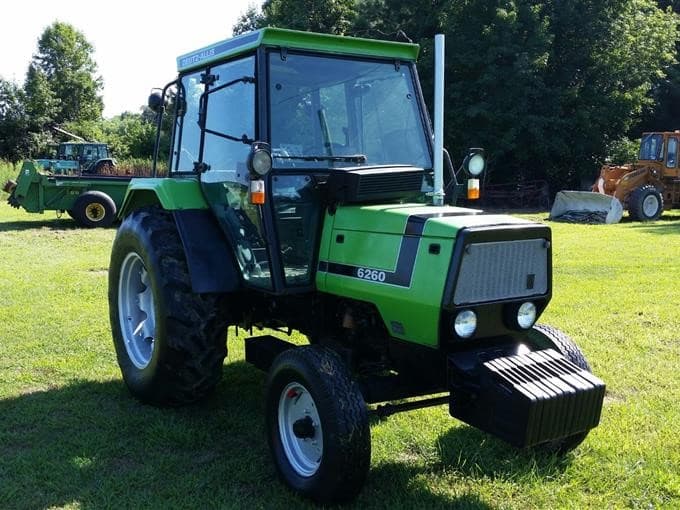

Deutz-Allis 6260

Last Updated: June 2024

Overview

The Deutz-Allis 6260 is a utility tractor designed for various applications. This tractor boasts a power output of 61 hp, provided by its 3-cylinder, air-cooled Deutz diesel engine. The tractor's transmission system features a partially synchronized and dual split two-speed power shift, allowing for 16 forward gears and 8 reverse gears. Notably, the 6260 has a 4x2 2WD chassis, with a powerful steering mechanism, aiding in the machine's handling and maneuverability. The tractor comes with an open center hydraulic system and gives the operator a choice between a ROPS and a Cab operator station.
Show more...

Key Specifications

Category: Utility

Power Output: 61

Transmission: Partially Synchronized/Dual-Split two-speed power shift

Drive Type: 2WD

Operating Weight: 6018 (2WD ROPS), 6459 (4WD ROPS), 6878 (2WD Cab), 7319 (4WD Cab)

Fuel Type: Diesel

Deutz-Allis 6260 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
F3L 913
Cooling Type
Air-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
187
Bore (in)
4.02
Stroke (in)
4.92
Rated RPM
2500
Power Output (hp)
61

Transmission

Type
Partially Synchronized/Dual-Split two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
-
Width (in)
82.3
Height (in)
91.3 (ROPS), 97.5 (cab)
Operating Weight (lb)
6018 (2WD ROPS), 6459 (4WD ROPS), 6878 (2WD Cab), 7319 (4WD Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric Starter, 12 volts
Brake Type
-
Hydraulic System Type
Open Center
