Deutz-Allis 5220

Last Updated: June 2024

Overview

Deutz-Allis 5220 is powered by a three-cylinder Toyosha diesel engine delivering a power output of 26 horsepower. This engine features a liquid-cooled system with a 4.2 quarts capacity, ensuring it stays cool under heavy operations. The tractor is available in both 2WD and 4WD options giving the user a choice based on their needs. A synchromesh transmission supports 12 forward and 4 reverse gears offering great variety in driving speeds. Steering is manual with an optional power upgrade for an easier maneuvering experience. The tractor uses an open centre hydraulic system.

Key Specifications

Power Output: 26

Transmission: Synchromesh

Drive Type: Four-Wheel Drive

Operating Weight: 2222 (2WD), 2398 (4WD)

Fuel Type: Diesel

Image Gallery

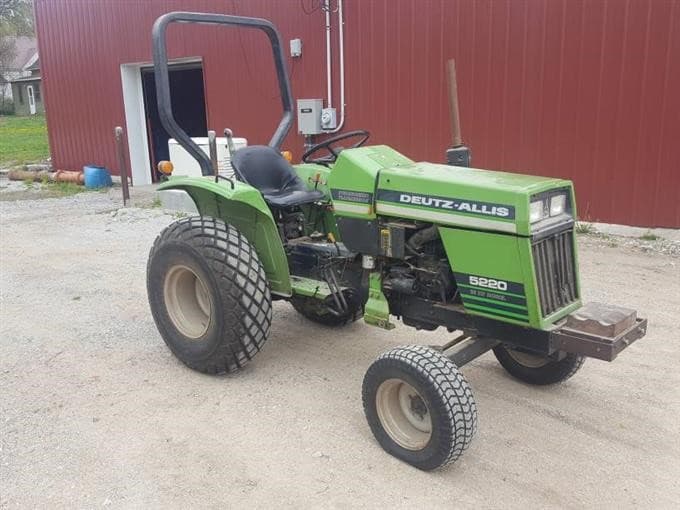

Deutz-Allis 5220 Tractor

Technical Specifications

Engine

Manufacturer: Toyosha
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 86.96
Bore (in): 3.23
Stroke (in): 3.54
Rated RPM: 2500
Power Output (hp): 26

Transmission

Type: Synchromesh
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 111.6 (2WD), 111.8 (4WD)
Width (in): 49.8 (2WD), 50.6 (4WD)
Height (in): -
Operating Weight (lb): 2222 (2WD), 2398 (4WD)

Power Take-Off (PTO)

PTO Type: 540 RPM Rear
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 2WD and 4WD variants available
Drive Type: Four-Wheel Drive
Steering Type: Manual (Power Steering Optional)
Coolant Capacity (qts): 4.2
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
