Denning E 10-18

Last Updated: June 2024

Overview

The Denning E 10-18 is a standard-tread tractor that operates on a 2WD chassis. It comes equipped with a 4-cylinder gasoline engine made by Waukseha, featuring a displacement of 202 cubic inches and a liquid cooling system. The engine has a bore of 3.50 inches, a stroke of 5.25 inches, and is rated at 1200 RPM. The tractor employs a 6-speed friction disc transmission for both forward and reverse directions. The rear tires are made of steel and measure 46 inches in diameter and 10 inches in width. Overall, the tractor measures 120 inches in length, 56 inches in width, and 61 inches in height, with an operating weight of 3600 pounds.

Key Specifications

Category: Utility, Standard Tread

Transmission: 6-speed friction disc

Drive Type: 2WD

Operating Weight: 3600

Fuel Type: Gasoline

Image Gallery

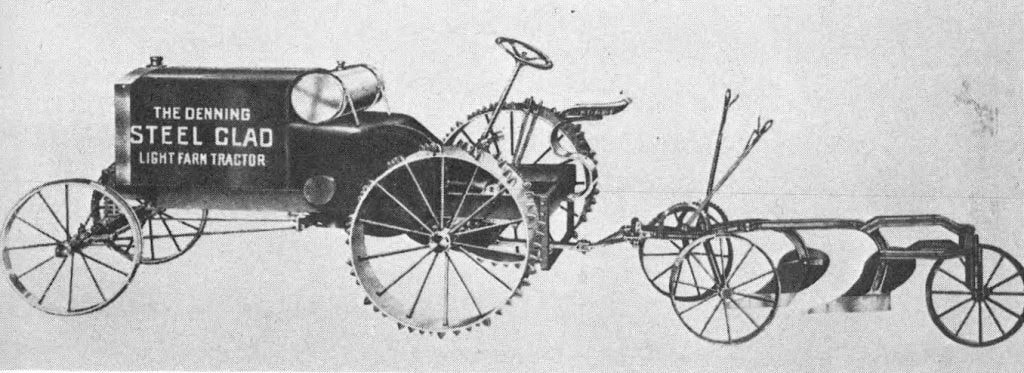

Denning E 10-18 Tractor

Denning E 10-18 vs. Similar Tractors

Operating Weight

Average

Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer: Waukseha
Model: -
Cooling Type: Liquid
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: -
Cylinders: 4
Displacement (ci): 202
Bore (in): 3.5
Stroke (in): 5.25
Rated RPM: 1200
Power Output (hp): -

Transmission

Type: 6-speed friction disc
Forward Gears: 6
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 120
Width (in): 56
Height (in): 61
Operating Weight (lb): 3600

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 28
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 46
Rear Tire Width (in): 10
Front/Rear Rim Diameter (in): -
Tire Type: Steel (Rear)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
