David Brown 950

Last Updated: June 2024

Overview

The David Brown 950 is a 2WD utility tractor from the series. This tractor was manufactured by David Brown from 1958 to 1959. The David Brown 950 is equipped with a 2.7 L (165.0 cu·in) four-cylinder diesel engine and the Twin-Range transmission with 6 forward and 2 reverse gears. The tractor's cooling system has a liquid-cooled design, and the engine output is capable of delivering 42.5 HP at 2,200 rpm of power. The tractor is equipped with optional power steering and has a manual system as standard. It uses an open operator station with an electric starter system. It utilizes a clutch system with a 254 mm dry disc for controlling the transmission system, which comes with a total of 6 forward gears and 2 reverse gears.

Key Specifications

Category: Utility

Power Output: 42.5

Transmission: Twin-Range

Drive Type: 2WD

Operating Weight: 4230

Fuel Type: Diesel

Image Gallery

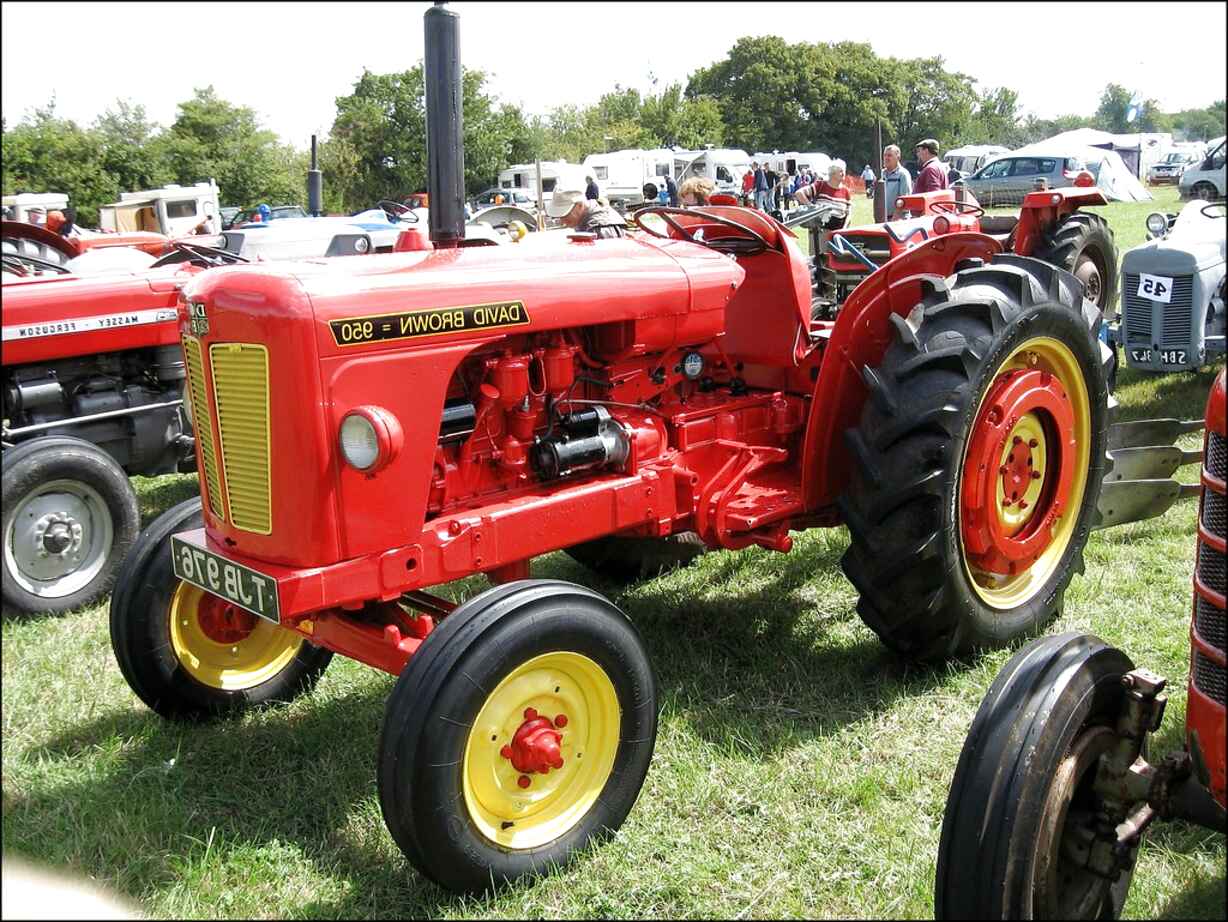

David Brown 950 Tractor

David Brown 950 vs. Similar Tractors

Power Output

Average

Greater than 39% of similar tractors.

Operating Weight

Average

Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer: David Brown
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 165
Bore (in): 3.625
Stroke (in): 4
Rated RPM: 2200
Power Output (hp): 42.5

Transmission

Type: Twin-Range
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 118
Width (in): 64
Height (in): 78.5
Operating Weight (lb): 4230

Power Take-Off (PTO)

PTO Type: Transmission or live (optional)
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual, Power (optional)
Coolant Capacity (qts): 14.4
Front Tire Diameter (in): -
Front Tire Width (in): 6
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1959
Hitch Type: -
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Mechanical drum
Hydraulic System Type: -
