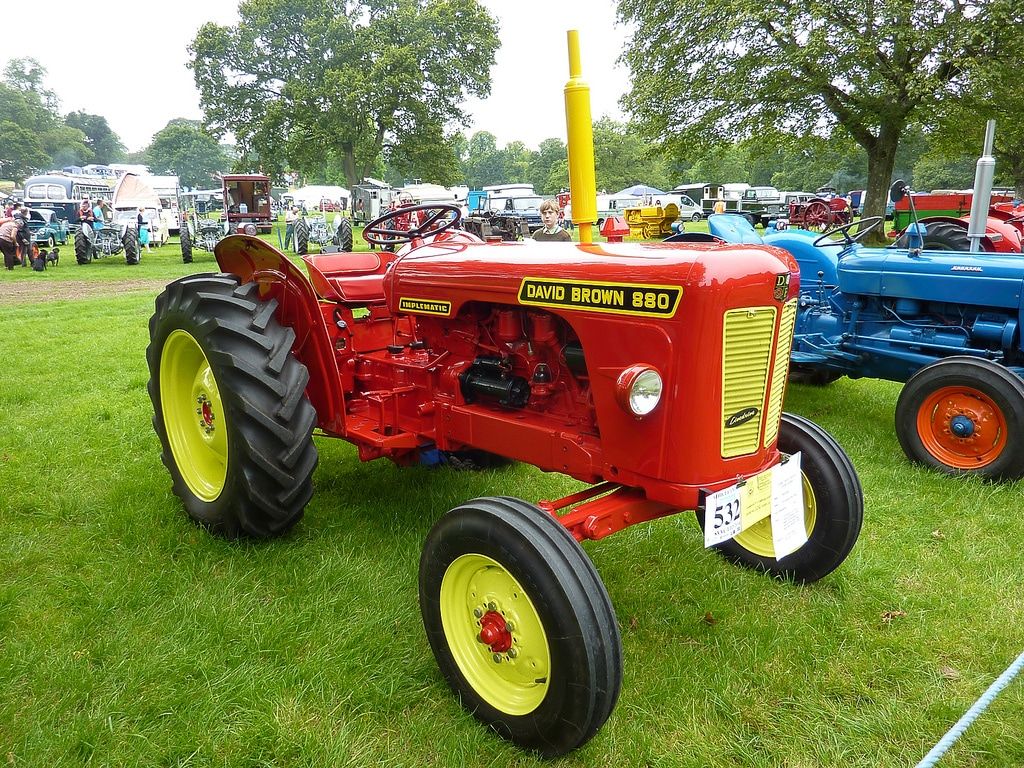

David Brown 880 Implematic

Last Updated: June 2024

Overview

The David Brown 880 Implematic is a 2WD utility tractor manufactured by David Brown in Meltham Mills, Huddersfield, England from 1961 to 1965. The David Brown 880 Implematic is equipped with one of two engines: a 2.7 L (165.0 cu·in) four-cylinder diesel engine or a 2.5 L (154.0 cu·in) three-cylinder diesel engine and one of two transmissions: a transmission with 6 forward and 2 reverse gears or a transmission with 12 forward and 4 reverse gears.
Show more...

Key Specifications

Category: Utility

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4315

Fuel Type: Diesel

Lift Capacity: 2645 lbs

Image Gallery

David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor David Brown 880 Implematic Tractor

David Brown 880 Implematic vs. Similar Tractors

Hitch Capacity
Average
Greater than 44% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
David Brown
Model
2.7L 4-cyl diesel or 2.5L 3-cyl diesel
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4 or 3
Displacement (ci)
165 or 154
Bore (in)
3.625 or 3.8125
Stroke (in)
4.00 or 4.50
Rated RPM
1800 or 2200
Power Output (hp)
-

Transmission

Type
Manual
Forward Gears
6 or 12
Reverse Gears
2 or 4
Total Gears
-

Dimensions

Length (in)
115
Width (in)
64
Height (in)
52.625
Operating Weight (lb)
4315

Power Take-Off (PTO)

PTO Type
Live (2-stage clutch)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
12
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1965
Hitch Type
Three-Point Hitch
Hitch Category
Category II/I
Hitch Position
Rear
Hitch Capacity (lb)
2645 lbs
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
