David Brown 1212

Last Updated: June 2024

Overview

The David Brown 1212 is a 2WD utility tractor manufactured by David Brown in Meltham Mills, Huddersfield, England from 1971 to 1976. It is equipped with a four-cylinder diesel engine that has a power output of 71 hp. The tractor boasts a partial power shift transmission with 12 forward and 4 reverse gears. Also featured are differential mechanical drum brakes and either an open operator station or optional cab. The tractor operates at a rated RPM of 2300, with a wheelbase of 89 inches and a weight of approximately 6724 lbs.

Key Specifications

Category: Utility

Power Output: 71

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 6724

Fuel Type: Diesel

Image Gallery

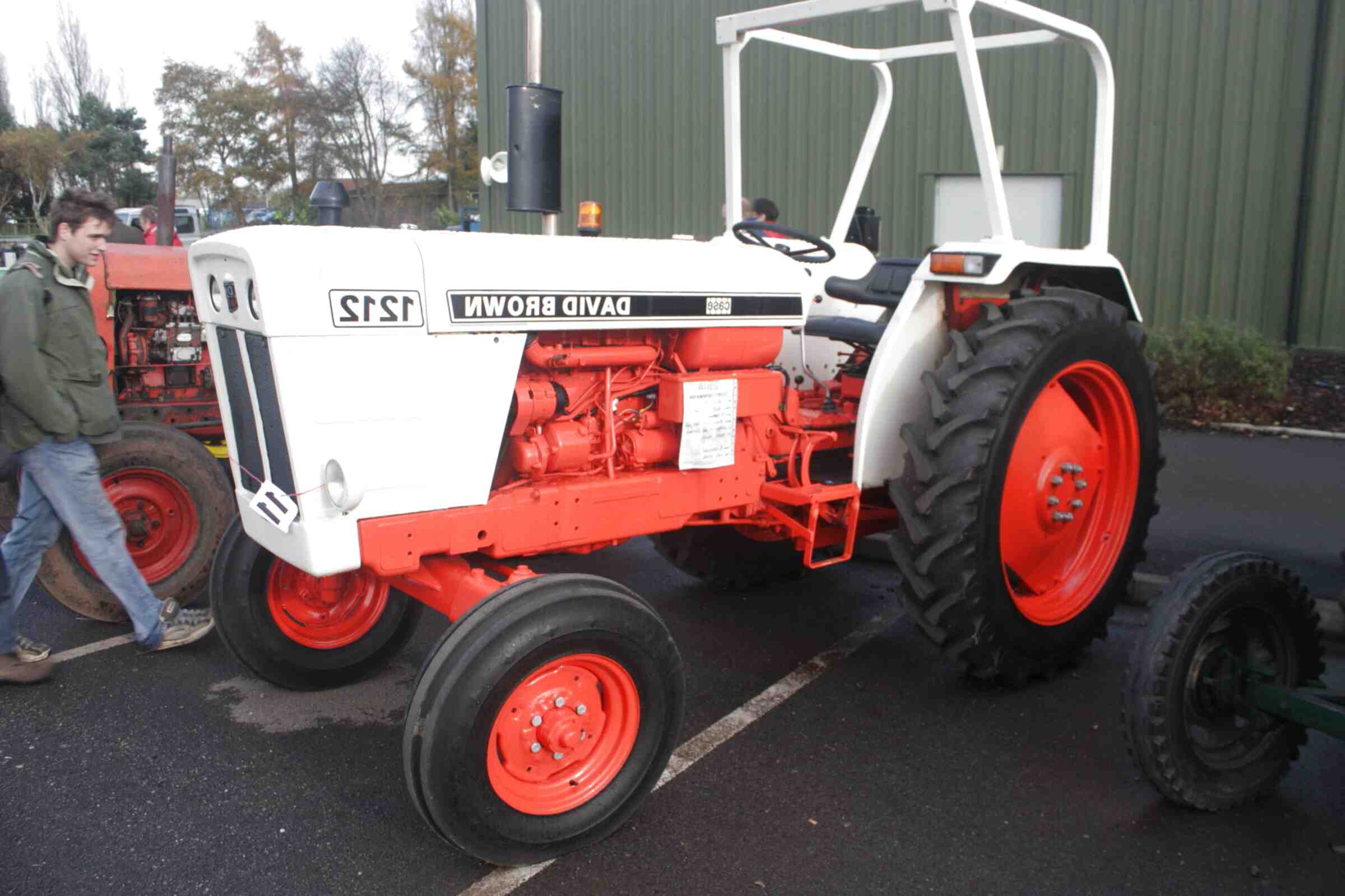

David Brown 1212 Tractor

David Brown 1212 vs. Similar Tractors

Power Output

Average

Greater than 65% of similar tractors.

Hitch Capacity

Above Average

Greater than 72% of similar tractors.

Operating Weight

Average

Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer: David Brown
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 219
Bore (in): 3.94
Stroke (in): 4.5
Rated RPM: 2300
Power Output (hp): 71

Transmission

Type: Partial power shift
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 142.9
Width (in): 69.7
Height (in): 104.7
Operating Weight (lb): 6724

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 14.8
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1976
Hitch Type: -
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): 4400 lbs
Operator Station Type: Open operator station or Cab (optional)
Starter Type: Electric
Brake Type: Differential mechanical drum
Hydraulic System Type: Open center
