David Brown 1210

Last Updated: June 2024

Overview

The David Brown 1210 is a utility tractor that was manufactured in England from 1971 to 1976. It is available in both 2WD and 4WD configurations, and is powered by a four-cylinder, liquid-cooled diesel engine. The tractor features a 12-speed synchromesh transmission, power steering, and a category II hitch. Additional options include an open operator station or an optional cab. The 1210 has a 4,400 lb lift capacity, and uses 15 quarts of coolant. The tractor weighs between 5860 and 6910 pounds, and measures 142.9 inches in length, 78 inches in width, and 89.8 inches in height.

Key Specifications

Category: Utility

Power Output: 61

Transmission: Synchromesh

Drive Type: 2WD / 4WD

Operating Weight: 5860 to 6910

Fuel Type: Diesel

Image Gallery

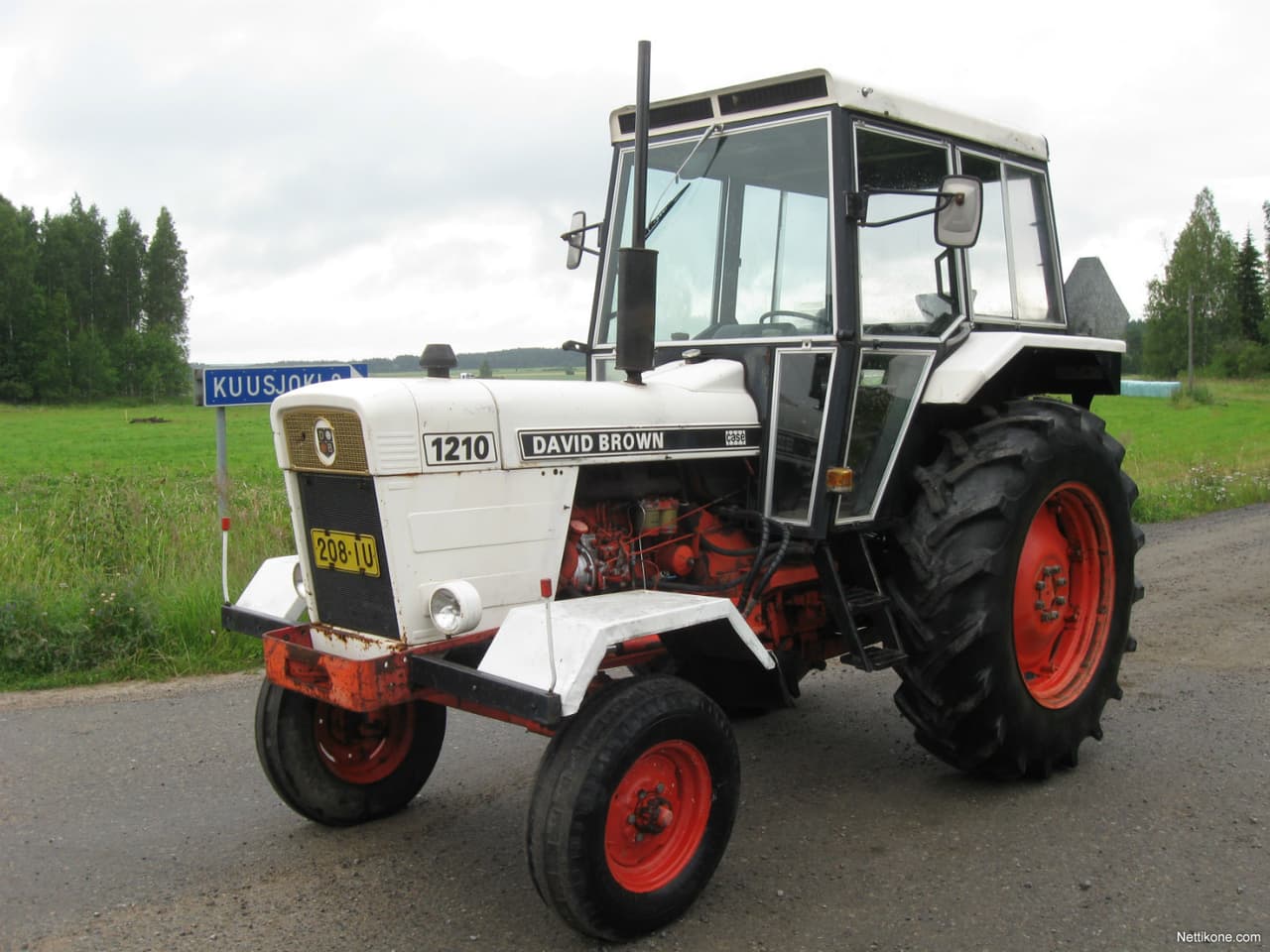

David Brown 1210 Tractor

David Brown 1210 vs. Similar Tractors

Power Output

Average

Greater than 58% of similar tractors.

Hitch Capacity

Above Average

Greater than 72% of similar tractors.

Operating Weight

Above Average

Greater than 89% of similar tractors.

Technical Specifications

Engine

Manufacturer: David Brown
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 219
Bore (in): 3.94
Stroke (in): 4.49
Rated RPM: -
Power Output (hp): 61

Transmission

Type: Synchromesh
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 142.9
Width (in): 78
Height (in): 89.8
Operating Weight (lb): 5860 to 6910

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD / 4WD
Steering Type: Power
Coolant Capacity (qts): 15
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1976
Hitch Type: -
Hitch Category: II
Hitch Position: -
Hitch Capacity (lb): 4400 lbs
Operator Station Type: Open operator station or Cab (optional)
Starter Type: Electric
Brake Type: Differential mechanical shoe
Hydraulic System Type: Open center
