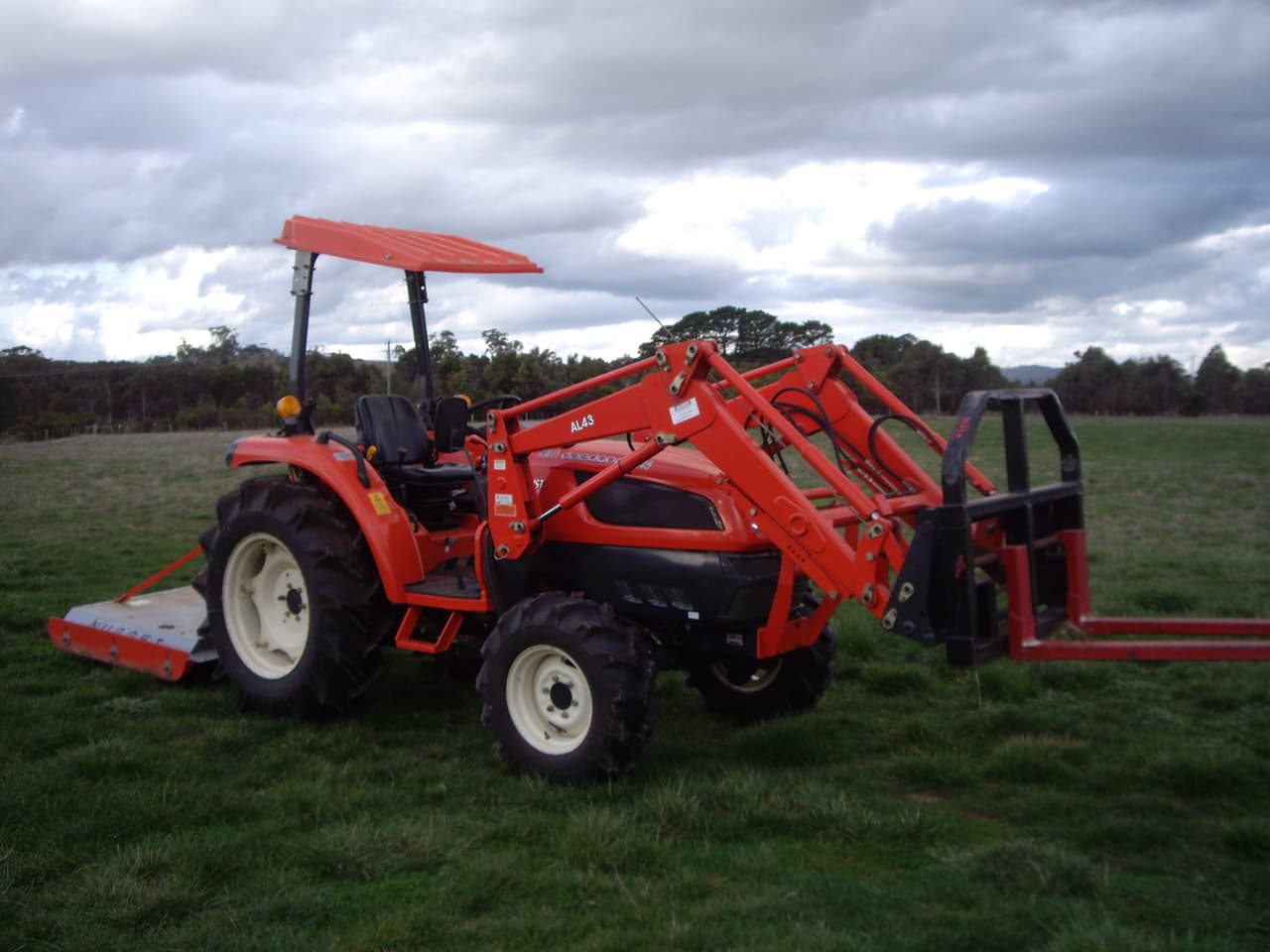

Daedong EX45

Last Updated: June 2024

Overview

The Daedong EX45 tractor is a rugged, durable machine suited for a variety of tasks. Its powerful 45 horsepower Daedong 4A220LXM engine has three cylinders and uses a liquid-cooling system. The tractor boasts a hydrostatic power steering system and a 12-speed hydrostatic transmission making it easy to operate. With a wheelbase of 74 inches, it provides stable operation and maneuverability. The tractor is 136 inches long, 64.4 inches wide, and has a height of 96.3 inches. It has a significant operational weight, coming in at 3,924 lbs.
Show more...

Key Specifications

Power Output: 45

Transmission: Hydrostatic

Drive Type: 4-Wheel Drive (4WD)

Operating Weight: 3,924

Fuel Type: Diesel

Image Gallery

Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor Daedong EX45 Tractor

Technical Specifications

Engine

Manufacturer
Daedong
Model
4A220LXM
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
134.1
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
45

Transmission

Type
Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
136
Width (in)
64.4
Height (in)
96.3
Operating Weight (lb)
3,924

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4-Wheel Drive (4WD)
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
