Daedong EX40(CR)

Last Updated: June 2024

Overview

The Daedong EX40(CR) is a utility tractor designed with power and functionality in mind. It comes with a 4A200LXM or 4A200LXH engine, which has three cylinders and outputs a robust 41 horsepower. The tractor uses a synchroshuttle or hydrostatic transmission with 12 forward gears. The tractor's design also includes a rear three-point hitch capable of lifting up to 2493.5 lbs. It stands out for its compact size, with a lengeth of 11.4 inches, and operating weights of 3924.3 and 3847.1 lbs. The tractor runs on a diesel engine with a displacement of 122 cubic inches. Despite the absence of certain specifics key to a more comprehensive understanding, the Daedong EX40(CR) demonstrates reliable performances centered on strength, utility, and efficiency.

Key Specifications

Category: Utility

Power Output: 41

Transmission: Synchroshuttle / Hydrostatic

Drive Type: 4WD

Operating Weight: 3924.3 / 3847.1

Fuel Type: Diesel

Image Gallery

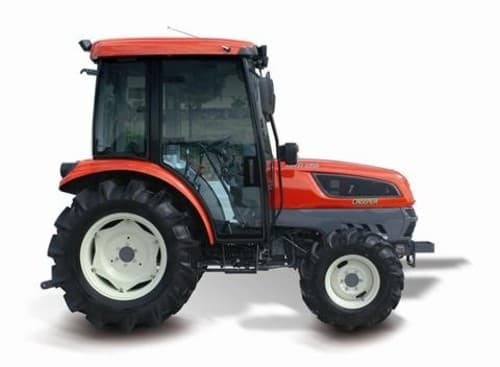

Daedong EX40(CR) Tractor

Daedong EX40(CR) vs. Similar Tractors

Power Output

Average

Greater than 38% of similar tractors.

Hitch Capacity

Average

Greater than 41% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 4A200LXM / 4A200LXH
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 122
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 41

Transmission

Type: Synchroshuttle / Hydrostatic
Forward Gears: 12 / Inf. 3
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 11.4
Width (in): 64.8
Height (in): 96
Operating Weight (lb): 3924.3 / 3847.1

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 8
Rear Tire Diameter (in): 24
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 2493.5 lbs
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: -
