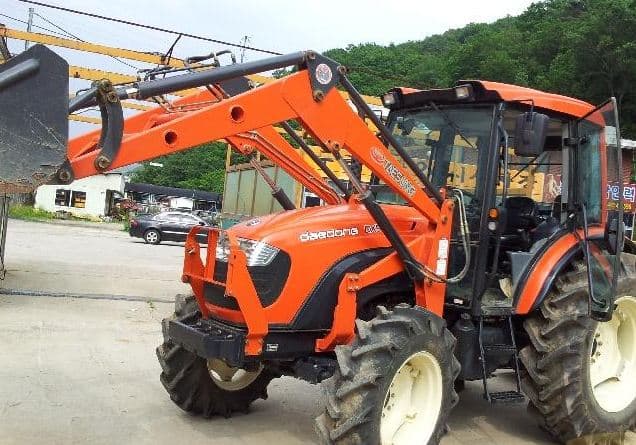

Daedong EX35

Last Updated: June 2024

Overview

The Daedong EX35 is a durable and reliable tractor, designed for versatile utility work and equipped with a 4x4 MFWD 4WD chassis for superior traction and off-road performance. It is driven by a powerful 38 hp Daedong 3B183LXM diesel engine, offering efficient performance with low maintenance requirements. The engine features a liquid cooling system and is turbocharged for increased power and efficiency. It is paired with a smooth 12-speed transmission, which facilitates easy and effective control over the tractor's speed and direction. The tractor's compact yet robust design contributes to its impressive operating weight of 3668 lbs, and with dimensions measuring 134.6 inches in length, 61 inches in width, and 93.8 inches in height, the EX35 is suited to a wide variety of tasks and environments.
Show more...

Key Specifications

Power Output: 38 hp

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3668 lbs

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Daedong
Model
3B183LXM
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
111.4 ci
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
38 hp

Transmission

Type
Hydrostatic
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
134.6
Width (in)
61 inches
Height (in)
93.8
Operating Weight (lb)
3668 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
