Daedong DK501(C)

Last Updated: June 2024

Overview

The Daedong DK501(C) is a robust tractor designed to deliver heavy-duty performance. Powered with an Engine Model 4A200TLXB, it offers a power output of 49 horsepower at 2600 RPMs. The synchronized shuttle transmission ensures smooth gear transition with 12 forward and 12 reverse gears for increased maneuverability. It supports a 3 Point Hitch Type with a lift capacity of 2654.4 lbs adding on to its utility. With an operating weight of 5048.6 lbs, the DK501(C) delivers reliable performance for most farming tasks.
Show more...

Key Specifications

Power Output: 49

Transmission: Synchronized Shuttle

Operating Weight: 5048.6

Lift Capacity: 2654.4 lbs

Image Gallery

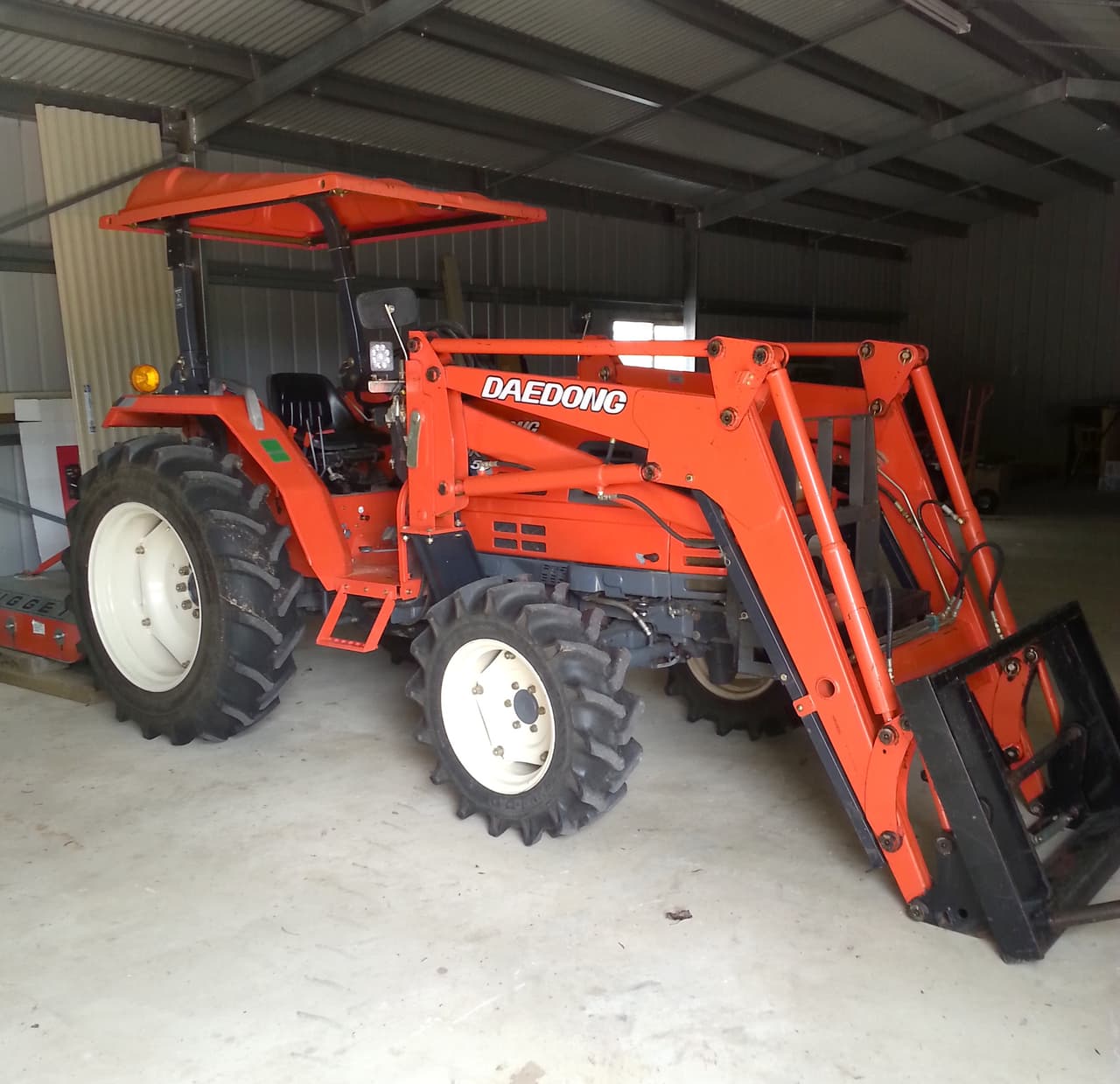

Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor Daedong DK501(C) Tractor

Technical Specifications

Engine

Manufacturer
-
Model
4A200TLXB
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
-
Displacement (ci)
122
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
49

Transmission

Type
Synchronized Shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
12.1
Width (in)
64.8 (5.4 ft)
Height (in)
97.2 (8.1 ft)
Operating Weight (lb)
5048.6

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
3 Point Hitch
Hitch Category
Cat I & I
Hitch Position
-
Hitch Capacity (lb)
2654.4 lbs
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
