Daedong DK501

Last Updated: June 2024

Overview

The Daedong DK501 tractor is a robust piece of machinery driven by a 50 horsepower Daedong 4A200T engine. This compact utility tractor features a liquid-cooled, turbocharged, diesel engine with four cylinders and a displacement of 122ci. It has a 4x4 MFWD 4WD chassis configuation and comes equipped with hydrostatic power steering for easy, precise control. The tractor has a manual transmission with 12 forward and reverse gears. It features Ag type tires with a front diameter of 18 inches and width of 9.5 inches, and rear tires with a diameter of 28 inches and width of 13.6 inches. The tractor is designed for continuous heavy-duty use and offers unrivaled performance in its class.

Key Specifications

Power Output: 50

Transmission: Manual

Drive Type: MFWD 4WD

Fuel Type: Diesel

Image Gallery

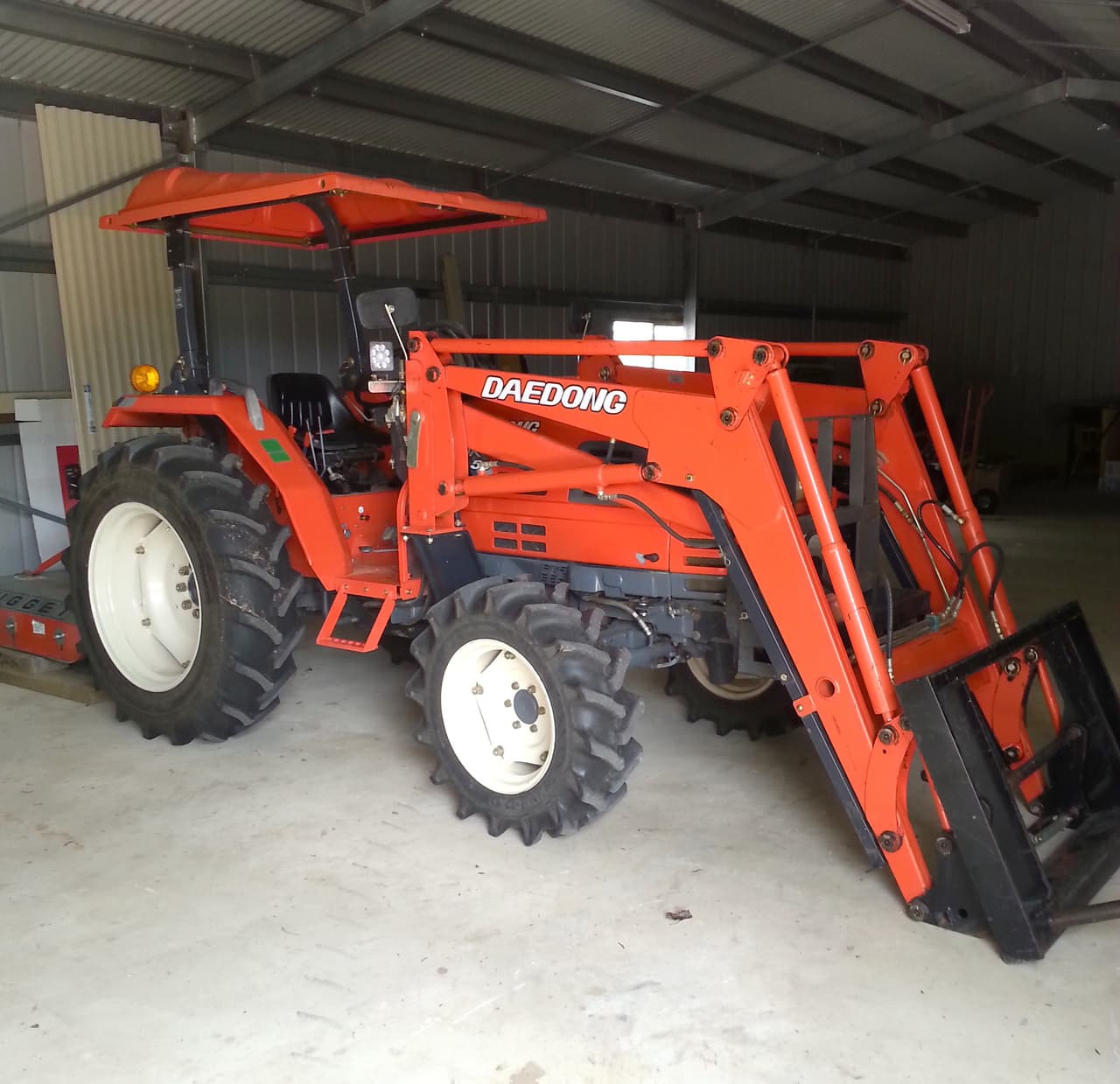

Daedong DK501 Tractor

Technical Specifications

Engine

Manufacturer: Daedong
Model: 4A200T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 122
Bore (in): -
Stroke (in): -
Rated RPM: -
Power Output (hp): 50

Transmission

Type: Manual
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 18
Front Tire Width (in): 9.5
Rear Tire Diameter (in): 28
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
