Daedong CK25 HST

Last Updated: June 2024

Overview

The Daedong CK25 HST is a utility tractor equipped with a potent Daedong TD1300LXE engine. With 3 cylinders, the engine delivers a gross power output of 25 horsepower and is rated at 2600 RPM. This model features a hydrostatic drive transmission with infinite 3 forward gears. It boasts an operating weight of 3174.7 pounds and a lift capacity of 1763.7 pounds. The CK25 HST offers a fuel capacity of 8 gallons, ensuring prolonged working hours before needing a refill. The overall length and width of the tractor stand at 125.98 and 51.57 inches, respectively, while standing 93.6 inches tall. Despite its robust structure, the tractor assures smooth maneuvering with a turning radius of 8.9 feet.

Key Specifications

Power Output: 25

Transmission: Hydrostatic Drive

Operating Weight: 3174.7

Lift Capacity: 1763.7 lbs

Image Gallery

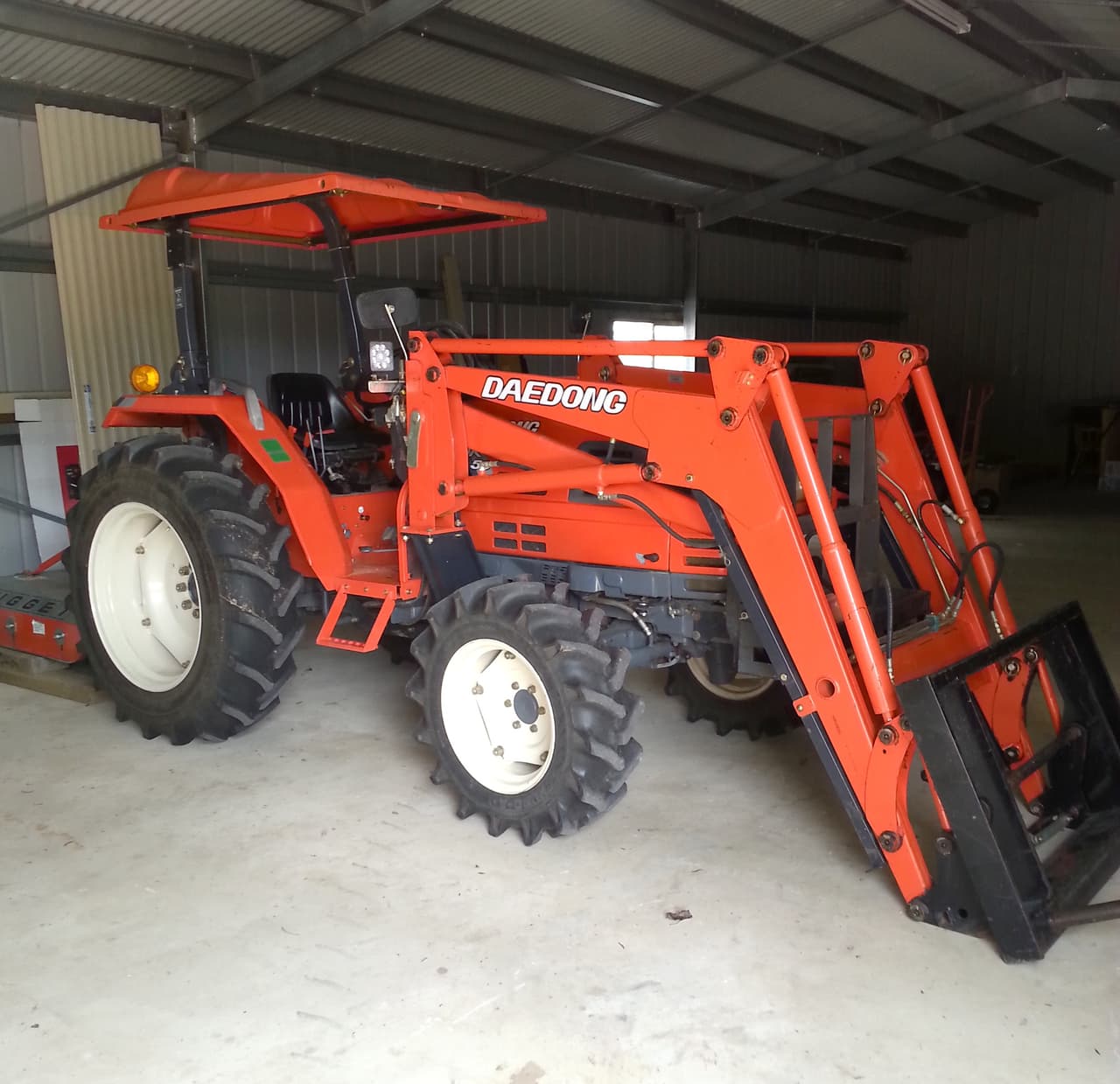

Daedong CK25 HST Tractor

Technical Specifications

Engine

Manufacturer: Daedong
Model: TD1300LXE
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: -
Cylinders: 3
Displacement (ci): 79.3
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 25

Transmission

Type: Hydrostatic Drive
Forward Gears: Infinite (3-range)
Reverse Gears: -
Total Gears: -

Dimensions

Length (in): 125.98
Width (in): 51.57
Height (in): 93.6
Operating Weight (lb): 3174.7

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): 14
Front Tire Width (in): 6
Rear Tire Diameter (in): 24
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 1763.7 lbs
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
