Daedong CK22

Last Updated: June 2024

Overview

The Daedong CK22 model tractor is powered by a Daedong 3C100A engine that delivers a power output of 22 horsepower. This engine features 3 cylinders and has a displacement of 61.5 cubic inches, with its power measured optimally at 2800 rpm. The tractor also boasts a manual transmission system with 6 forward and 2 reverse gears. The CK22 has a substantial operating weight of 1962.2 pounds and provides a rear Category I hitch type with a lift capacity of 1109 pounds at 24 inches. The tractor's outer frame measures 3.7 feet in width, and the top of the cab reaches a height of 7.2 feet. Despite these robust measurements, the CK22 maintains a relatively small turning radius of 7.6 feet for superior maneuverability in different situations.

Key Specifications

Power Output: 22

Transmission: Manual

Operating Weight: 1962.2

Lift Capacity: 1109 lbs (at 24 inches)

Image Gallery

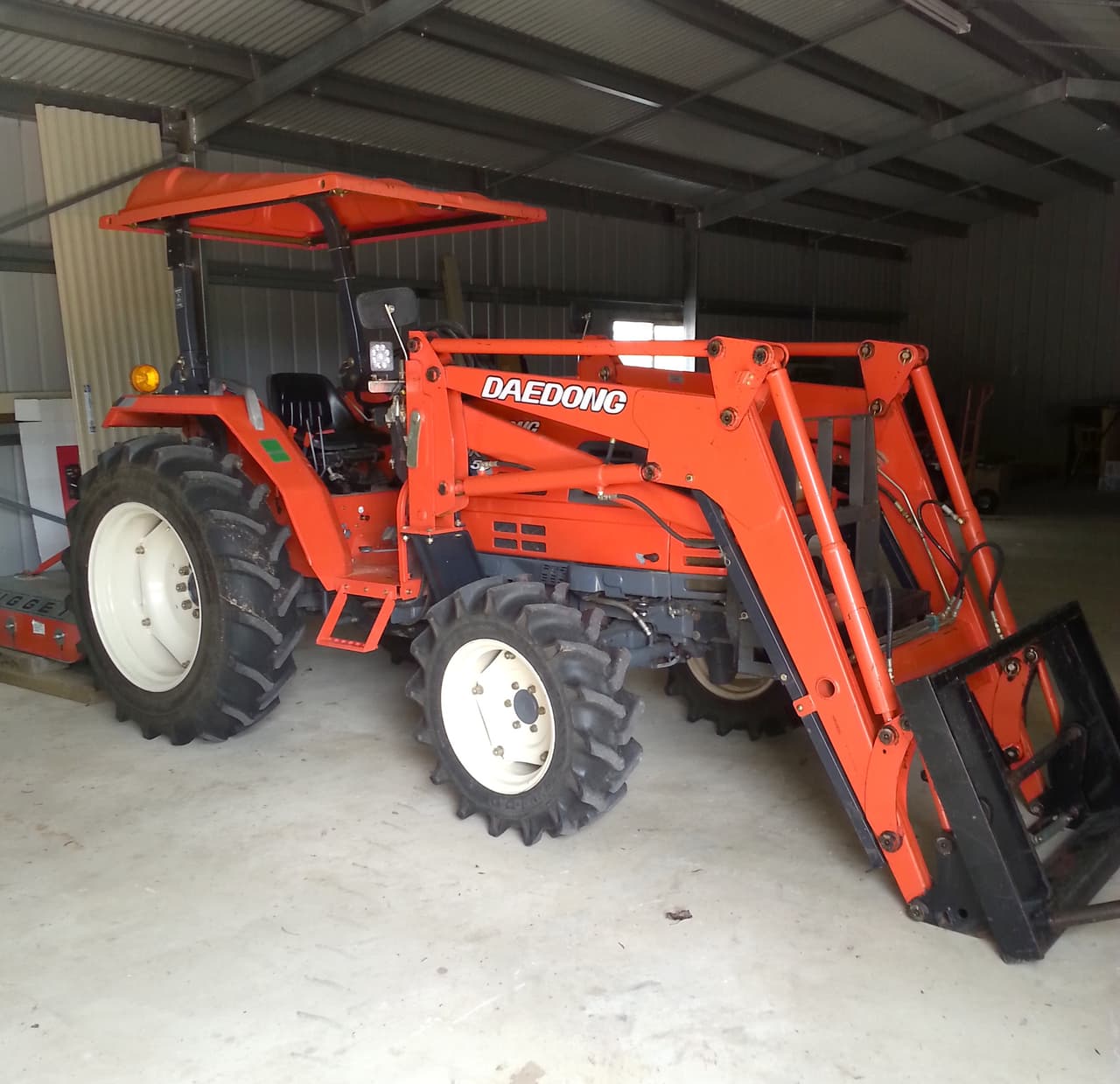

Daedong CK22 Tractor

Technical Specifications

Engine

Manufacturer: Daedong
Model: 3C100A
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: -
Cylinders: 3
Displacement (ci): 61.5
Bore (in): -
Stroke (in): -
Rated RPM: 2800
Power Output (hp): 22

Transmission

Type: Manual
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): 44.4
Height (in): 86.4 (Top of Cab Height converted from ft to in)
Operating Weight (lb): 1962.2

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: 3 Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 1109 lbs (at 24 inches)
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
