Custom H

Last Updated: September 2024

Overview

The Custom H tractor is a versatile machine built for farm work. It has a Chrysler 6A engine with 6 cylinders, running on gasoline. This engine is liquid-cooled and produces 56 horsepower at 1800 RPM, which is good for many farm tasks.

The tractor has a gear transmission with 5 forward gears and 1 reverse gear. This gives the driver good control over speed and power. The Custom H is quite large, measuring 136.875 inches long and 80 inches tall. It weighs 4296 pounds, making it sturdy for tough jobs. The tractor uses agricultural tires on both front and rear, which are great for gripping in fields and on uneven ground.

Key Specifications

Power Output: 56 hp (41.8 kW)

Transmission: Gear

Operating Weight: 4296 lb (1949 kg)

Fuel Type: Gasoline

Image Gallery

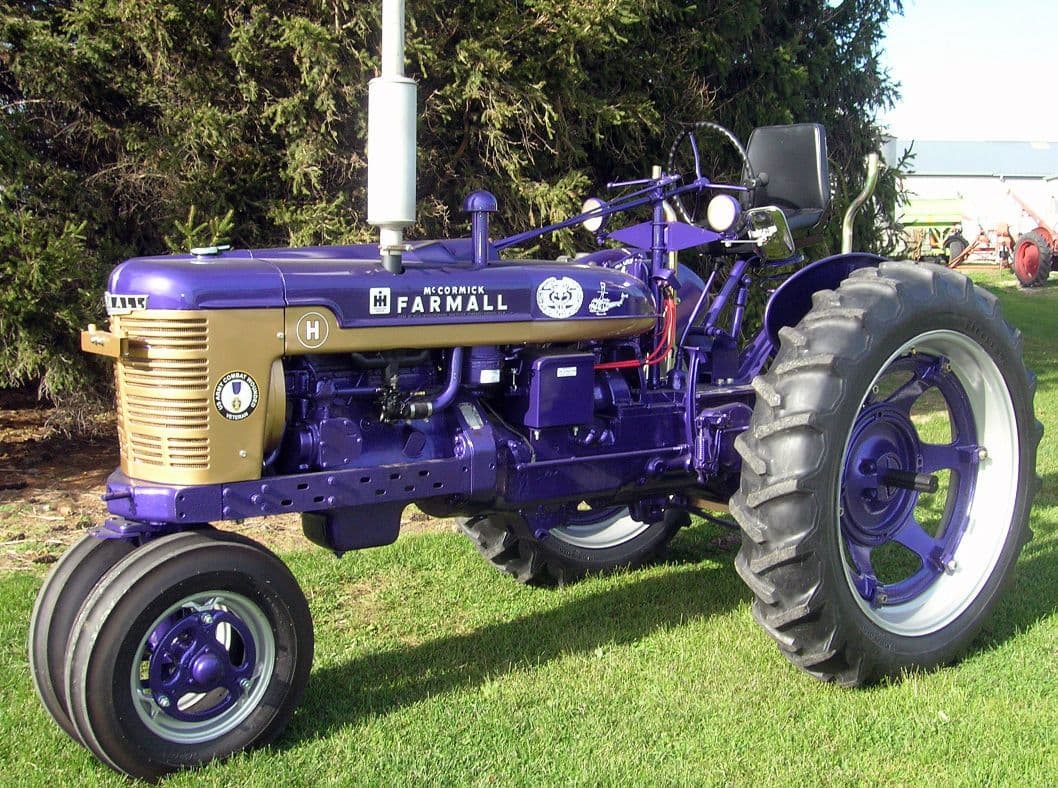

Custom H Tractor

Custom H vs. Similar Tractors

Power Output

The Power Output for the Custom H is Average. It is greater than 47% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Custom H is Average. It is greater than 37% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Custom H is Average. It is greater than 56% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Custom H is Poor. It is greater than 7% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors
