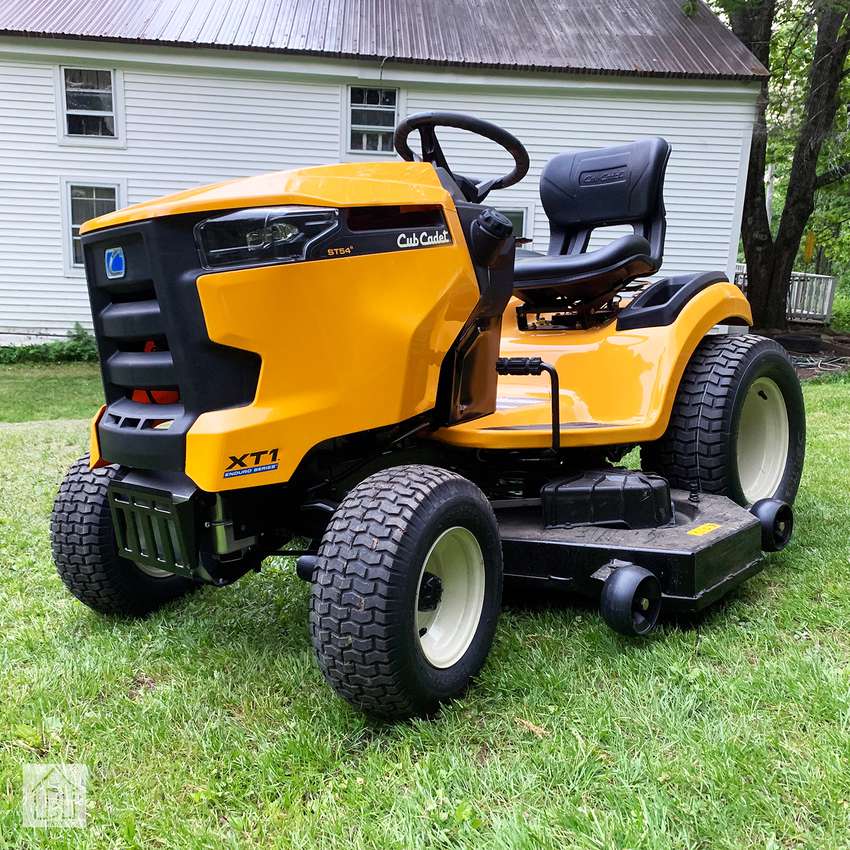

Cub Cadet XT1 ST54

Last Updated: September 2024

Overview

The Cub Cadet XT1 ST54 is a powerful lawn and garden tractor designed for homeowners with large yards. It features a 24 hp Kohler V-twin engine, which is above average in power for its class. The engine is air-cooled and runs on gasoline, making it easy to maintain. With a displacement of 44.2 ci, this engine offers very high performance compared to similar models.

This tractor uses a belt-driven hydrostatic transmission, allowing for smooth, infinite forward and reverse speeds. It has a 2WD drive system and manual steering, which are common for lawn tractors. The XT1 ST54 measures 68 inches long, 63 inches wide, and 45.3 inches tall, with a relatively light operating weight of 520 lb. It comes with an independent PTO with manual clutch, an open operator station, and disc brakes for reliable stopping power. The tractor rides on 16x6.5 front tires and 22x9.5 rear tires, providing good traction for various lawn care tasks.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 24 hp (17.9 kW)

Transmission: Belt-driven Hydrostatic

Drive Type: 2WD

Operating Weight: 520 lb (236 kg)

Fuel Type: Gasoline

Cub Cadet XT1 ST54 vs. Similar Tractors

Power Output

The Power Output for the Cub Cadet XT1 ST54 is Above Average. It is greater than 85% of similar Lawn and Garden tractors in our database.

Horsepower distribution of Lawn and Garden tractors

(across 0.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Cub Cadet XT1 ST54 is Below Average. It is greater than 28% of similar Lawn and Garden tractors in our database.

Operating weight distribution of Lawn and Garden tractors

(across 0.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Cub Cadet XT1 ST54 is Above Average. It is greater than 78% of similar Lawn and Garden tractors in our database.

Engine displacement distribution of Lawn and Garden tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Cub Cadet XT1 ST54 is Average. It is greater than 56% of similar Lawn and Garden tractors in our database.

Engine rated RPM distribution of Lawn and Garden tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kohler
Model
7000-series
Cooling Type
Air-cooled
Cylinder Orientation
V-twin
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
2
Displacement
44 ci (0.7 L)
Bore
3.31 in (84.1 mm)
Stroke
2.64 in (67.1 mm)
Rated RPM
3600
Power Output
24 hp (17.9 kW)

Transmission

Type
Belt-driven Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Brake Type
Disc
