Cub Cadet XT1 LT50

Last Updated: June 2024

Overview

The Cub Cadet XT1 LT50 is a 2WD lawn tractor from the XT1 Enduro Series manufactured by Cub Cadet (a division of MTD) from 2015 till today. Powered by a 0.7 L V-Twin gasoline engine coupled with a belt-driven hydrostatic transmission offering infinite forward and reverse gears, it delivers a top-notch and efficient performance. The tractor is built with an open operator station and manual steering for enhanced comfort and maneuverability.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 24

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Operating Weight: 498.2

Fuel Type: Gasoline

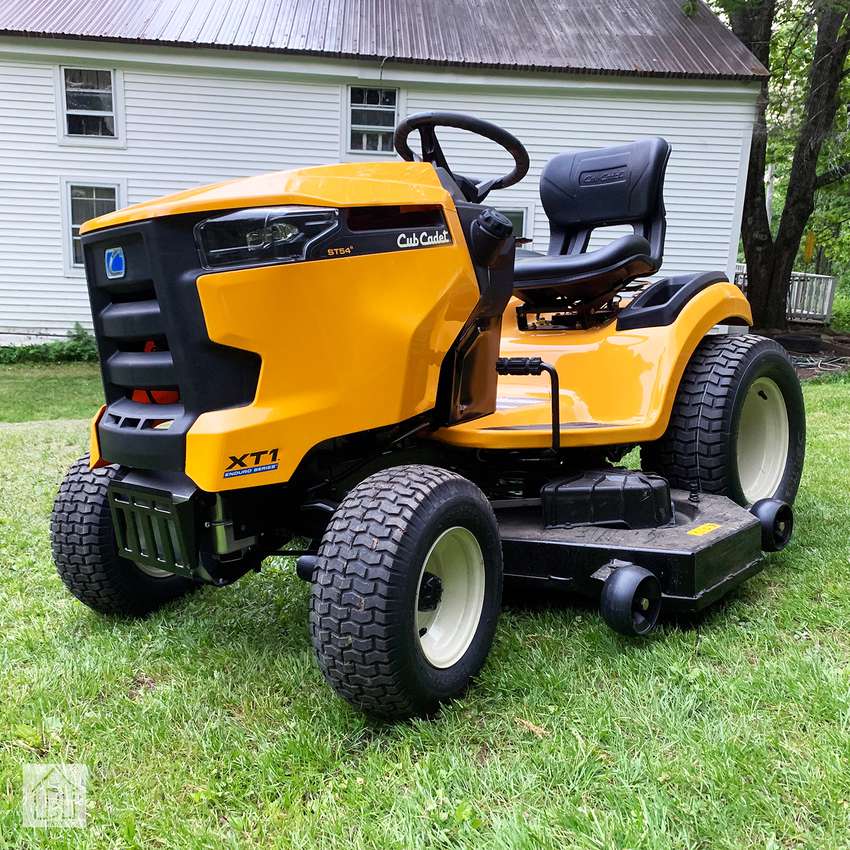

Image Gallery

Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor Cub Cadet XT1 LT50 Tractor

Cub Cadet XT1 LT50 vs. Similar Tractors

Power Output
Above Average
Greater than 87% of similar tractors.
Operating Weight
Below Average
Greater than 23% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
KT735
Cooling Type
Air-cooled
Cylinder Orientation
V-twin
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Natural
Cylinders
2
Displacement (ci)
44.2
Bore (in)
3.31
Stroke (in)
2.64
Rated RPM
3600
Power Output (hp)
24

Transmission

Type
Belt-driven hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
67.7
Width (in)
-
Height (in)
42.1
Operating Weight (lb)
498.2

Power Take-Off (PTO)

PTO Type
Independent with manual clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
Not applicable (Air-cooled engine)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
Current
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
Disc
Hydraulic System Type
-
