Cub Cadet SLTX1054

Last Updated: June 2024

Overview

The Cub Cadet SLTX1054 is a 2WD lawn tractor from the LTX1000 series. This tractor was manufactured by Cub Cadet from 2009 to 2014. The Cub Cadet SLTX1054 is equipped with a 0.7 L two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears. The SLTX1054 model used a Kohler Courage SV730 engine, which produces 26.0 HP of power. The tractor is fitted with manual sector and pinion steering and an open operator station.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 26 hp

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 573 lbs

Fuel Type: Gasoline

Image Gallery

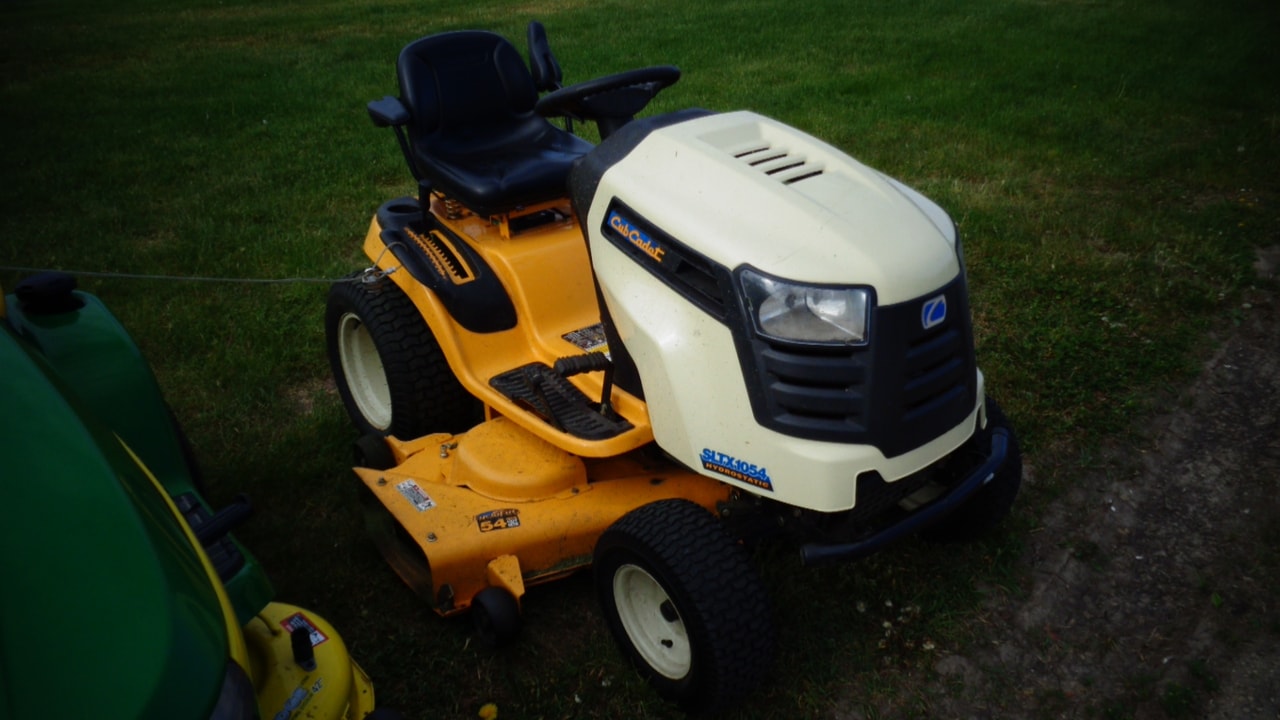

Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor Cub Cadet SLTX1054 Tractor

Cub Cadet SLTX1054 vs. Similar Tractors

Power Output
Excellent
Greater than 93% of similar tractors.
Operating Weight
Average
Greater than 48% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
Courage SV730
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Natural aspiration
Cylinders
2
Displacement (ci)
(Approximately) 44.2 ci
Bore (in)
3.27 in
Stroke (in)
2.64 in
Rated RPM
-
Power Output (hp)
26 hp

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
68.9
Width (in)
-
Height (in)
-
Operating Weight (lb)
573 lbs

Power Take-Off (PTO)

PTO Type
Independent with electric clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual sector and pinion
Coolant Capacity (qts)
Not applicable (Air-cooled engine)
Front Tire Diameter (in)
15
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
22
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2014
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
