Cub Cadet Sc2400

Last Updated: June 2024

Overview

The Cub Cadet Sc2400 is a sub-compact utility tractor, appreciated for its capabilities and compact size. Made by Yanmar, it features a 24 hp diesel engine with 3 cylinders and liquid cooling. The engine's displacement is 55.1 cubic inches, and it operates at a rated RPM of 3300. The transmission is hydrostatic, with infinite gears available in two ranges for both forward and reverse. This tractor is designed with MFWD 4WD for robust traction and control, and it has a power steering system for accurate maneuvering. The tractor weighs 1,280 lbs and has dimensions of 95.5 inches long and 44.5 inches wide. It uses Ag style tires, with a front tire size of 18x8.5-10 and a rear tire size of 26x12.0-12. The hydraulic system is an open center type, ensuring superior hydraulic control.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 24

Transmission: Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 1280

Fuel Type: Diesel

Image Gallery

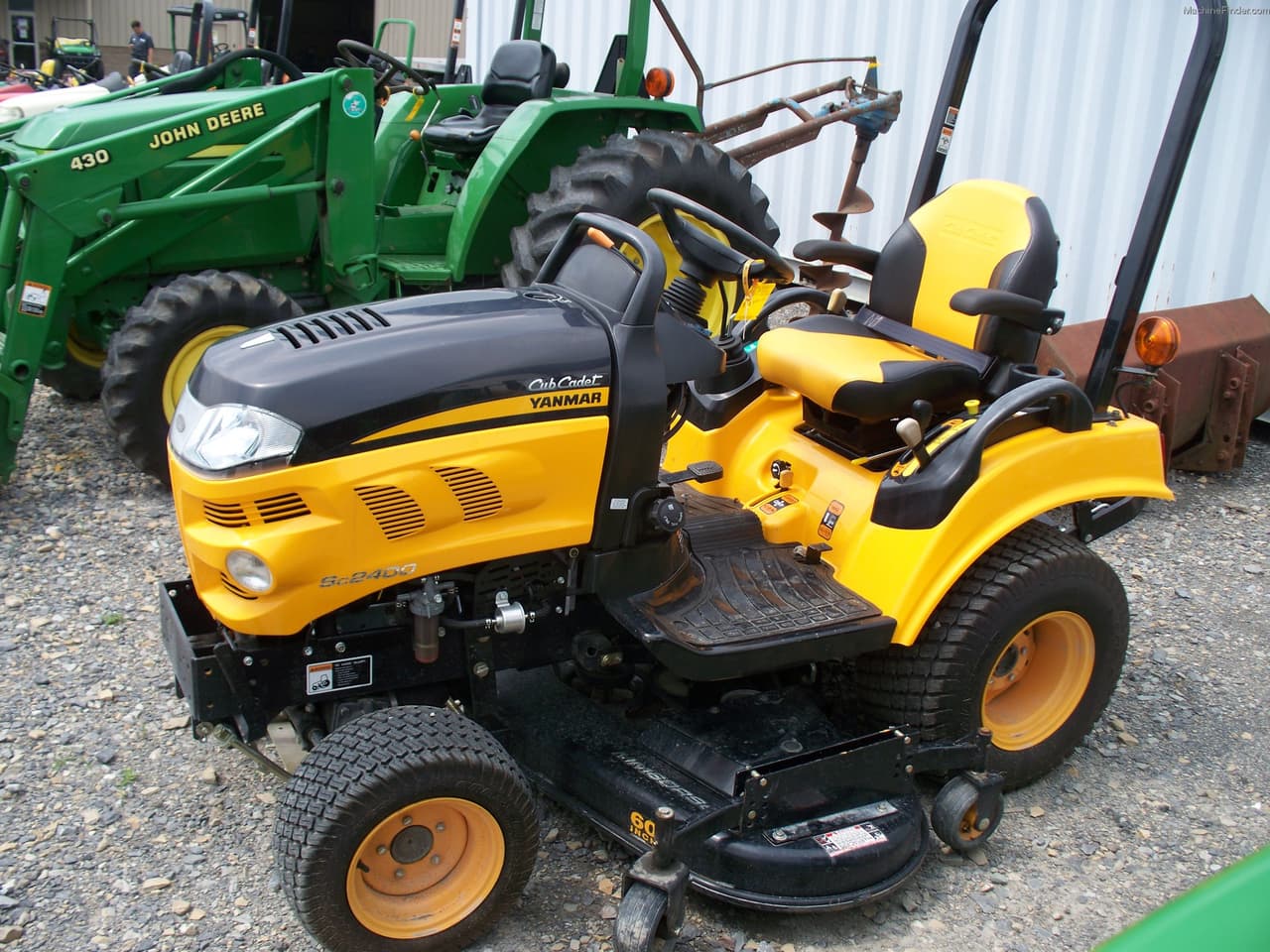

Cub Cadet Sc2400 Tractor

Cub Cadet Sc2400 vs. Similar Tractors

Power Output

Below Average

Greater than 16% of similar tractors.

Operating Weight

Poor

Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer: Yanmar
Model: -
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 55.1
Bore (in): 2.835
Stroke (in): 2.913
Rated RPM: 3300
Power Output (hp): 24

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 95.5
Width (in): 44.5
Height (in): -
Operating Weight (lb): 1280

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): 3.4
Front Tire Diameter (in): 18
Front Tire Width (in): 8.5
Rear Tire Diameter (in): 26
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Open Center
