Cub Cadet LTX1042 KW

Last Updated: June 2024

Overview

The Cub Cadet LTX1042 KW is a 2WD lawn tractor from the LTX1000 series, manufactured from 2012 to 2014. The tractor is equipped with a V-twin air-cooled natural aspirated gasoline engine with manual steering and a belt-driven hydrostatic transmission, offering infinite forward and reverse gears.

Key Specifications

Category: Lawn and Garden

Power Output: 18

Transmission: Belt-driven Hydrostatic

Drive Type: 2WD

Operating Weight: 496

Fuel Type: Gasoline

Image Gallery

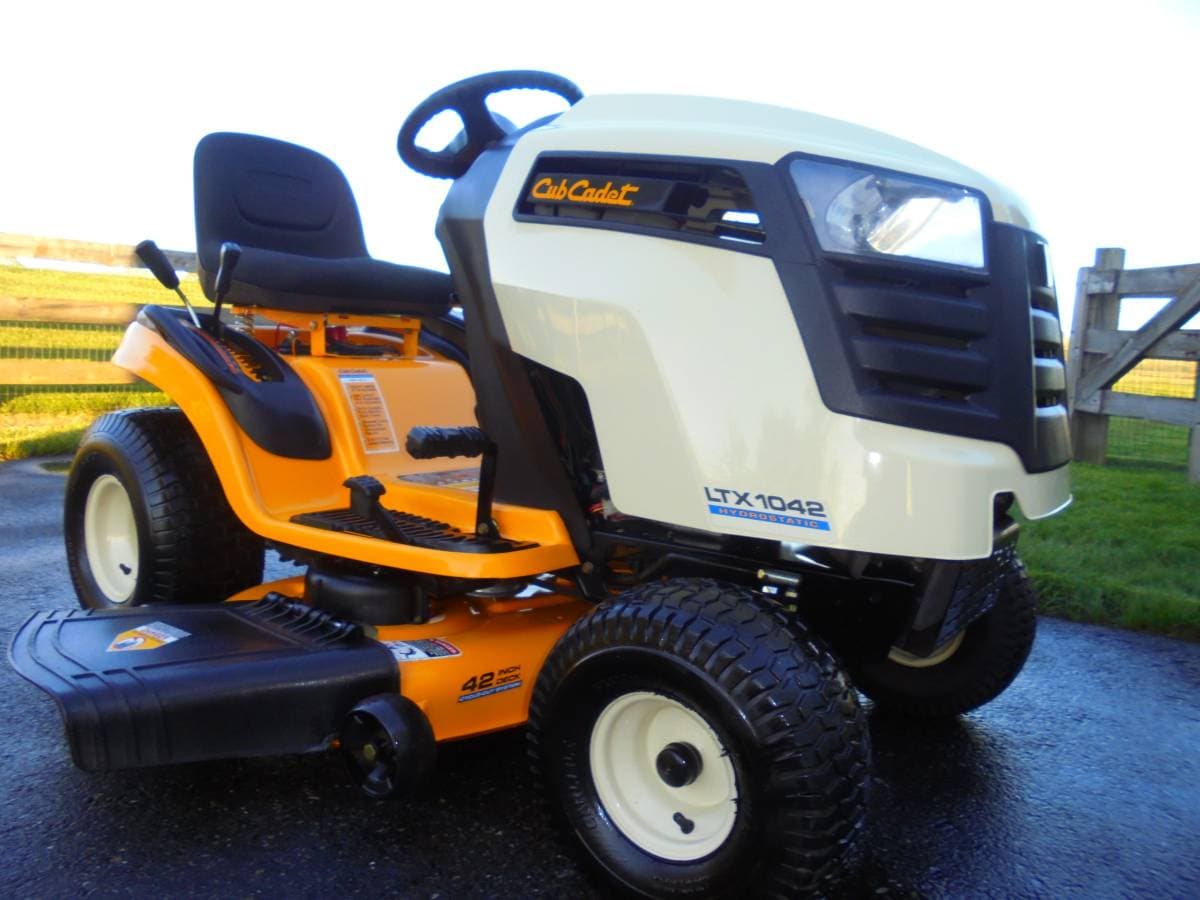

Cub Cadet LTX1042 KW Tractor

Cub Cadet LTX1042 KW vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Operating Weight

Below Average

Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kawasaki
Model: FR600V
Cooling Type: Air-cooled
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 36.8
Bore (in): 2.87
Stroke (in): 2.83
Rated RPM: 3600
Power Output (hp): 18

Transmission

Type: Belt-driven Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68.9
Width (in): -
Height (in): -
Operating Weight (lb): 496

Power Take-Off (PTO)

PTO Type: Independent with Manual Lever Clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2014
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open Operator Station
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
