Cub Cadet LT1046

Last Updated: June 2024

Overview

The Cub Cadet LT1046 is a lawn tractor from the LT1000 series. It was manufactured by Cub Cadet, a part of MTD from 2005 to 2008. The LT1046 is equipped with a 0.6 L V-Twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears. Its features include manual steering, dry disc brakes, and an open operator station and 3.5 gallon fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 23

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 500

Fuel Type: Gasoline

Image Gallery

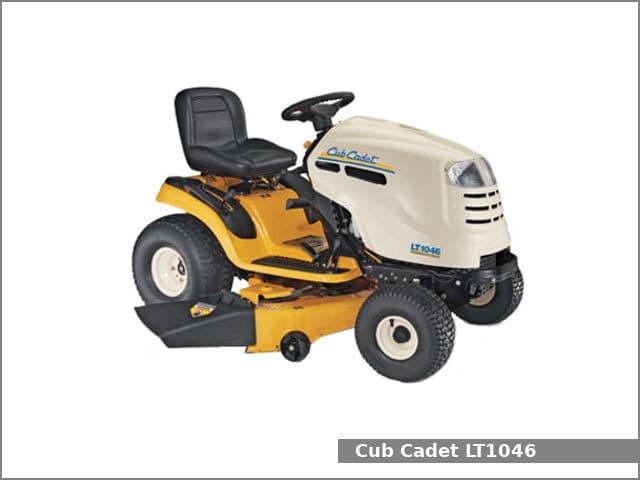

Cub Cadet LT1046 Tractor

Cub Cadet LT1046 vs. Similar Tractors

Power Output

Above Average

Greater than 82% of similar tractors.

Operating Weight

Below Average

Greater than 26% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command CV23
Cooling Type: Air-Cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 38.1
Bore (in): 3.03
Stroke (in): 2.64
Rated RPM: -
Power Output (hp): 23

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68.1
Width (in): 49
Height (in): 42.9
Operating Weight (lb): 500

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 20
Rear Tire Width (in): 10
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2008
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Dry disc
Hydraulic System Type: -
