Cub Cadet LT1024

Last Updated: June 2024

Overview

The Cub Cadet LT1024 is a 2WD lawn tractor from the LT 1000 series. This tractor was manufactured by Cub Cadet (a part of MTD) during 2004. The LT1024 is equipped with a 0.7 L V-twin gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears. It has manual steering, dry disc brakes, an open operator station, and 11.4 liters fuel tank. The tractor is used with lawn/turf tires at the front measuring 15x6 and lawn/turf tires at the rear measuring 20x9.

Key Specifications

Category: Lawn and Garden

Power Output: 24

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Operating Weight: 520

Fuel Type: Gasoline

Image Gallery

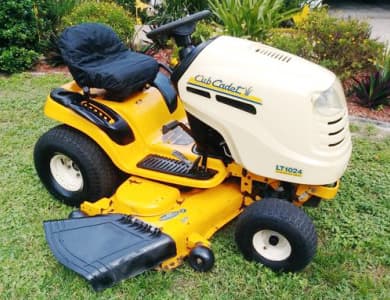

Cub Cadet LT1024 Tractor

Cub Cadet LT1024 vs. Similar Tractors

Power Output

Above Average

Greater than 87% of similar tractors.

Operating Weight

Average

Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer: Briggs & Stratton
Model: 446777
Cooling Type: Air-cooled
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural Aspiration
Cylinders: 2
Displacement (ci): 44.2
Bore (in): 3.11
Stroke (in): 2.87
Rated RPM: 3600
Power Output (hp): 24

Transmission

Type: Belt-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 67.7
Width (in): 53.9
Height (in): 42.9
Operating Weight (lb): 520

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 20
Rear Tire Width (in): 9
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Dry disc
Hydraulic System Type: -
