Cub Cadet i1042

Last Updated: June 2024

Overview

The Cub Cadet i1042 is a 2WD zero-turn mower from the iSeries. Manufactured in 2009, it's equipped with a single-cylinder, air-cooled, Kohler SV540 engine. Running on gasoline, it delivers about 18 horsepower at 3600 rpm. The mower uses a belt-driven hydrostatic transmission allowing for infinite forward and reverse gears, differential steering and disc brakes. It features an open operator station and is started electronically.

Key Specifications

Category: Lawn and Garden

Power Output: ~18.0

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

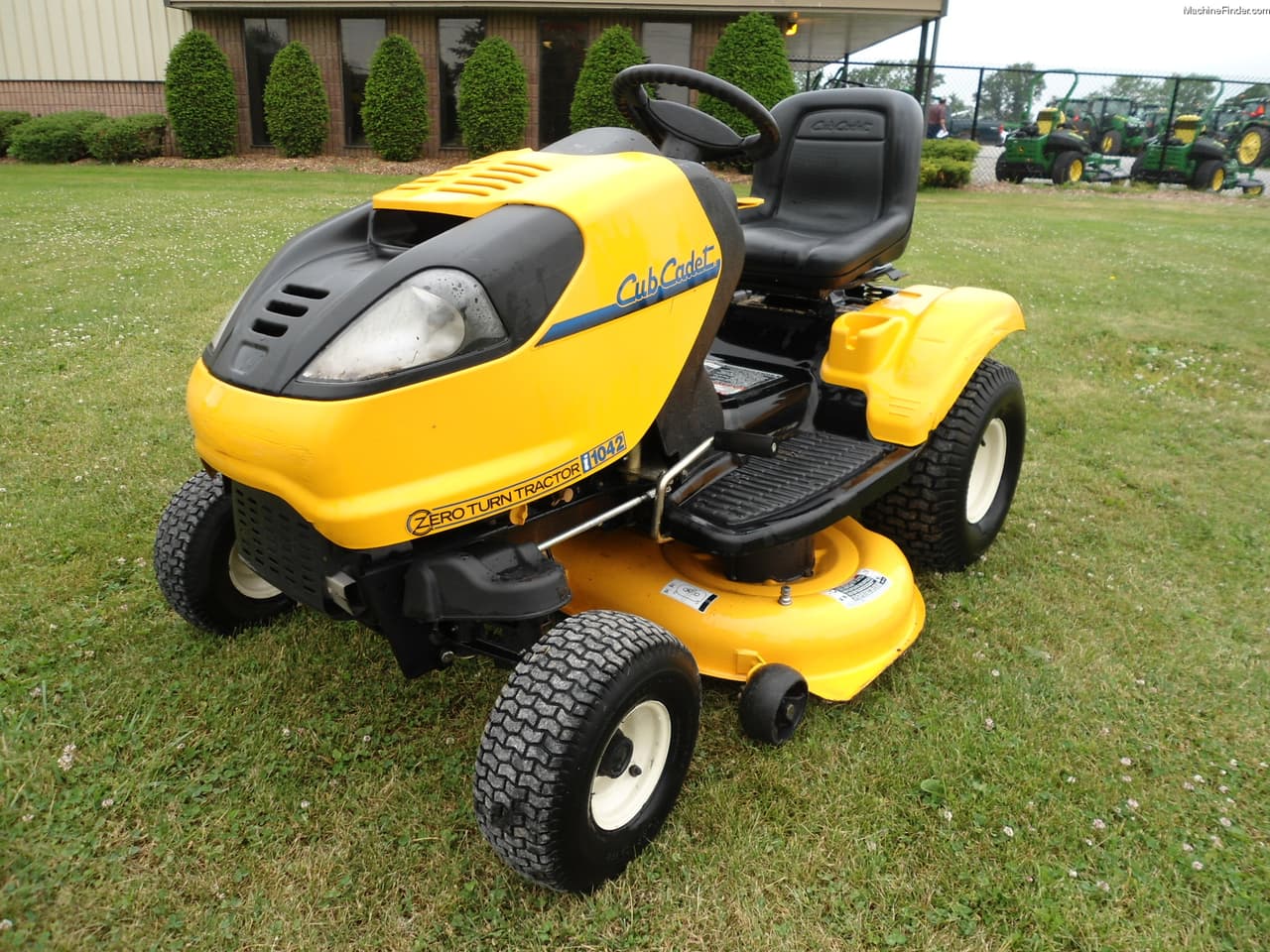

Cub Cadet i1042 Tractor

Cub Cadet i1042 vs. Similar Tractors

Power Output

Average

Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: SV540
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural
Cylinders: 1
Displacement (ci): ~32.6
Bore (in): ~3.5
Stroke (in): ~3.39
Rated RPM: 3600
Power Output (hp): ~18.0

Transmission

Type: Belt-driven hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Differential
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 5
Rear Tire Diameter (in): 20
Rear Tire Width (in): 8
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 2009
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Disc
Hydraulic System Type: -
