Cub Cadet GTX 2100

Last Updated: June 2024

Overview

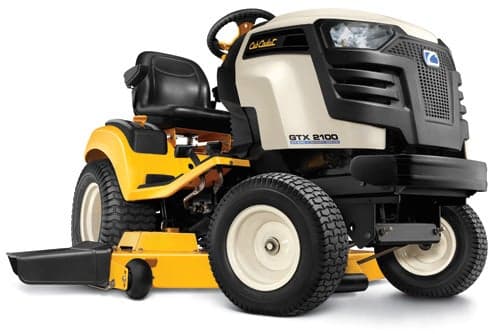

The Cub Cadet GTX 2100 is a 2WD garden tractor from the 2000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2011 to 2014. It is equipped with a 0.7L two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears. The tractor has an electronic power steering and mechanical disc brakes. The garden tractor was made with an open operator station. The Cub Cadet GTX 2100 garden tractor used the Kohler Command CH680 engine, a natural aspirated gasoline engine.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 23

Transmission: Hydro-Gear BDU-10 (Shaft-Driven Hydrostatic)

Drive Type: 2WD

Operating Weight: 721

Fuel Type: Gasoline

Image Gallery

Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor Cub Cadet GTX 2100 Tractor

Cub Cadet GTX 2100 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
Command CH680
Cooling Type
Air-Cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
41.1
Bore (in)
3.19
Stroke (in)
2.6
Rated RPM
3600
Power Output (hp)
23

Transmission

Type
Hydro-Gear BDU-10 (Shaft-Driven Hydrostatic)
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
76
Width (in)
42.7
Height (in)
47.2
Operating Weight (lb)
721

Power Take-Off (PTO)

PTO Type
Independent With Electric Clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Electronic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
23
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2014
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open Operator Station
Starter Type
Electric
Brake Type
Mechanical Disc
Hydraulic System Type
-
