Cub Cadet GTX 1054

Last Updated: June 2024

Overview

The Cub Cadet GTX 1054 is a 2WD lawn tractor from the GTX series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2010 to 2014. The Cub Cadet GTX 1054 is equipped with a 0.7 Liter two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears. The tractor used the Kohler Courage SV740 engine that produced 27 HP. It is equipped with manual steering, an open operator station, and a 3.5 US gallon fuel tank.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 27

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 586

Fuel Type: Gasoline

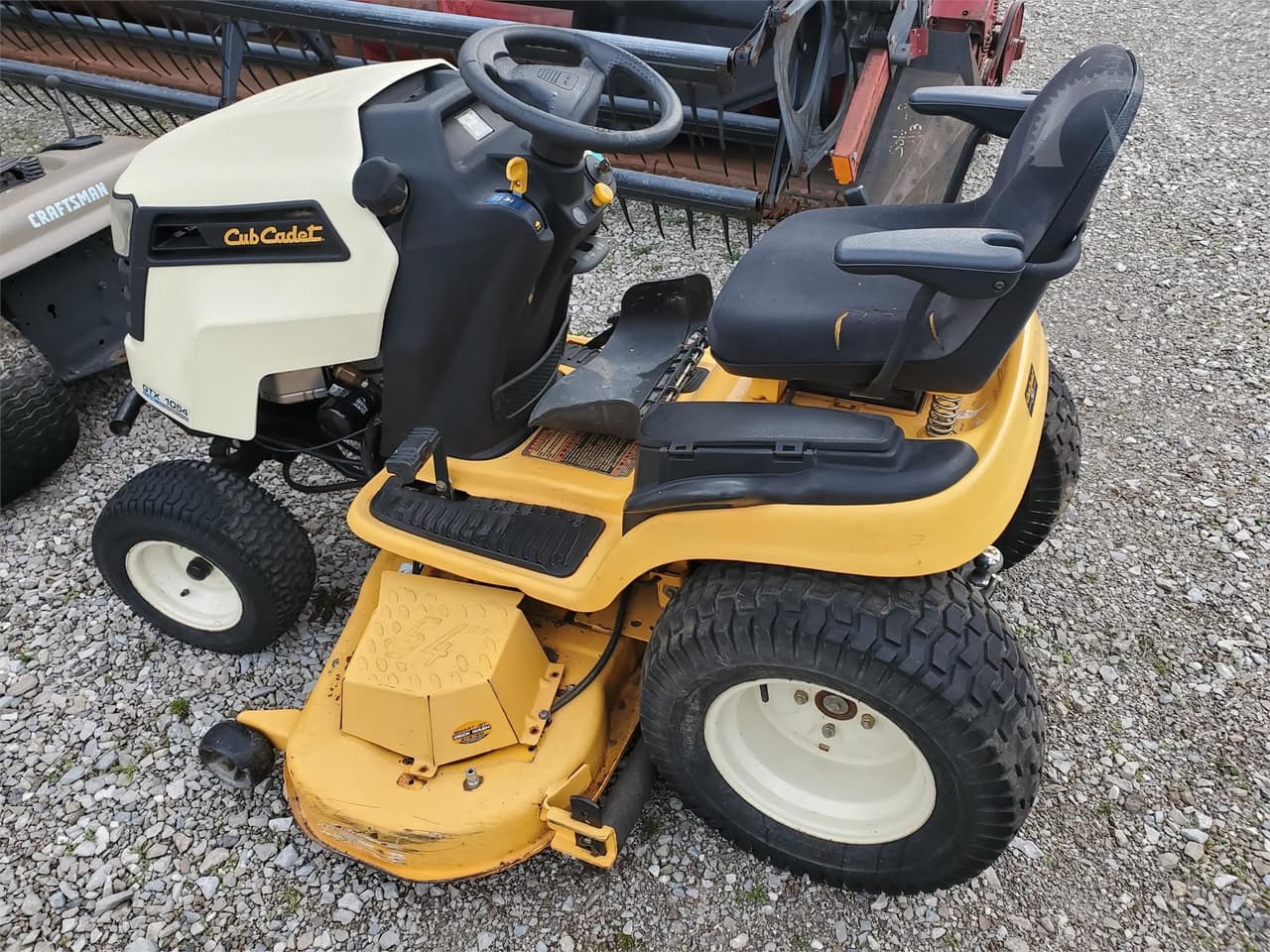

Image Gallery

Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor Cub Cadet GTX 1054 Tractor

Cub Cadet GTX 1054 vs. Similar Tractors

Power Output
Excellent
Greater than 96% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kohler
Model
Courage SV740
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
44.2
Bore (in)
3.27
Stroke (in)
2.64
Rated RPM
3600
Power Output (hp)
27

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
67.7
Width (in)
-
Height (in)
-
Operating Weight (lb)
586

Power Take-Off (PTO)

PTO Type
Independent with electric clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual sector and pinion
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
23
Rear Tire Width (in)
10.5
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
2014
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
