Cub Cadet GT1554

Last Updated: June 2024

Overview

The Cub Cadet GT 1554 is a 2WD garden tractor from the 1500 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2006 to 2008. The Cub Cadet GT1554 is equipped with a 0.7 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears. The Cub Cadet GT1554 garden tractor used the Kohler Command PRO CV740 engine. It is a 0.7 L, 725 cm2, (44.2 cuÂ·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm of maximum output power. The Cub Cadet GT 1554 is equipped with manual steering, single dry disc brakes, open operator station, and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 27

Transmission: Belt-driven Hydrostatic

Drive Type: 2WD

Operating Weight: 529

Fuel Type: Gasoline

Image Gallery

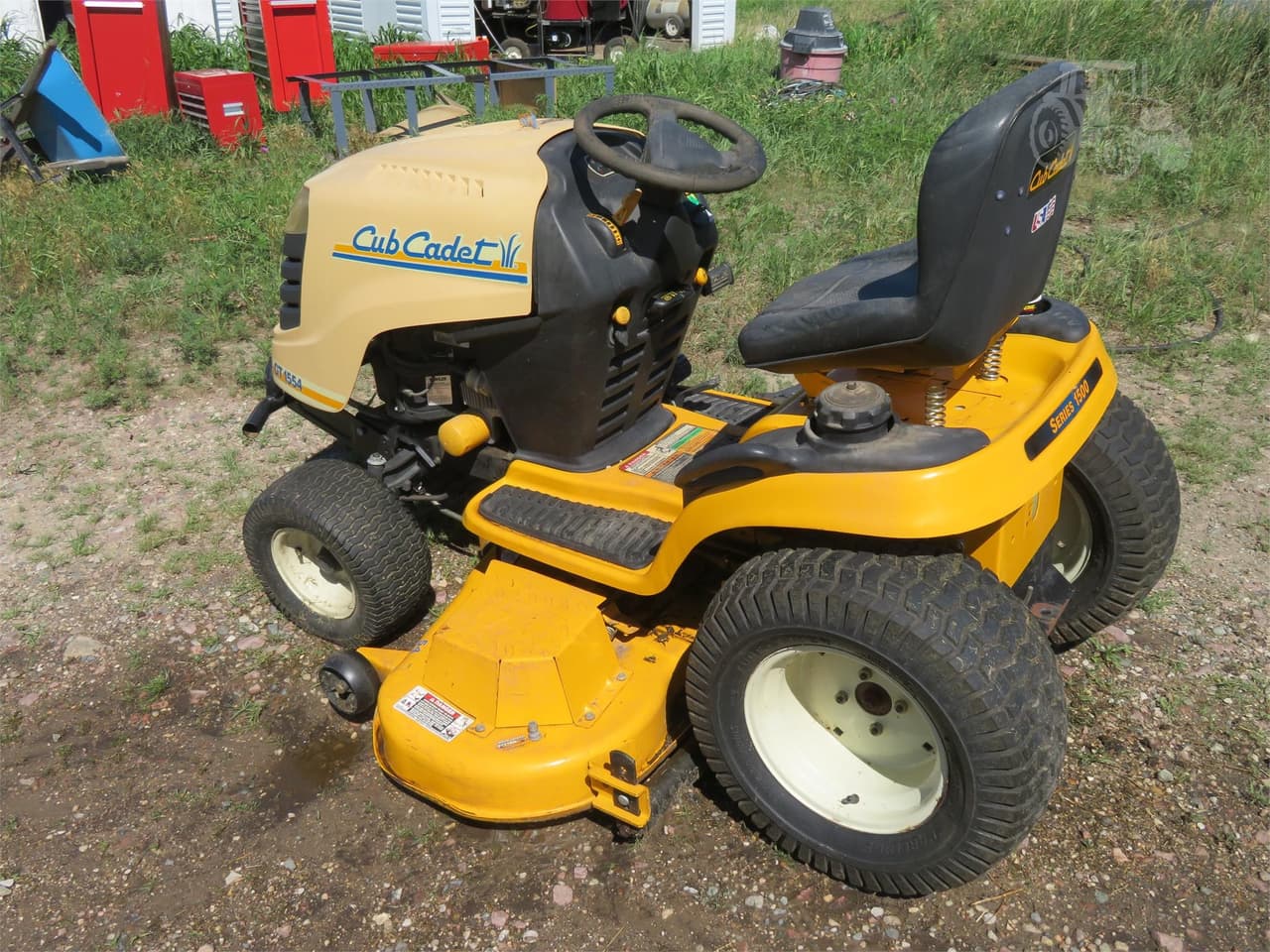

Cub Cadet GT1554 Tractor

Cub Cadet GT1554 vs. Similar Tractors

Power Output

Excellent

Greater than 96% of similar tractors.

Operating Weight

Average

Greater than 33% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Command PRO CV740
Cooling Type: Air-cooled
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 44.2
Bore (in): 3.27
Stroke (in): 3.39
Rated RPM: 3600
Power Output (hp): 27

Transmission

Type: Belt-driven Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68
Width (in): 60
Height (in): 43
Operating Weight (lb): 529

Power Take-Off (PTO)

PTO Type: Independent with Electric Clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 16
Front Tire Width (in): 7.5
Rear Tire Diameter (in): 23
Rear Tire Width (in): 10.5
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2008
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: Single Dry Disc
Hydraulic System Type: -
