Cub Cadet AGS 2160

Last Updated: June 2024

Overview

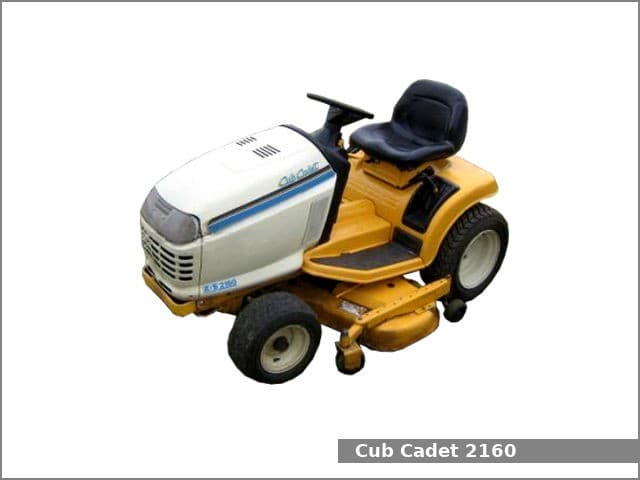

The Cub Cadet AGS 2160 is a 2WD garden tractor, part of the 2000 series, manufactured by Cub Cadet, a part of MTD, from 1994 to 1997. It's equipped with a Briggs & Stratton Vanguard engine, which is a 0.5L, V-twin naturally aspirated gasoline engine. The tractor provides six forward and reverse gears, managed by a shaft-driven gear-type transmission. The engine has a power output of 16 HP at 3,600 rpm. This model is fitted with Lawn/Turf type tires, with manual steering, and internal expanding brakes. Additional features include an open operator station and a mid-mount 46 in mower deck with 2 blades.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 16

Transmission: Shaft-driven gear type

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

Cub Cadet AGS 2160 Tractor Cub Cadet AGS 2160 Tractor Cub Cadet AGS 2160 Tractor Cub Cadet AGS 2160 Tractor Cub Cadet AGS 2160 Tractor Cub Cadet AGS 2160 Tractor

Cub Cadet AGS 2160 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
Briggs & Stratton
Model
Vanguard
Cooling Type
Air-cooled
Cylinder Orientation
V-twin
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
29.3
Bore (in)
2.68
Stroke (in)
2.6
Rated RPM
3,600
Power Output (hp)
16

Transmission

Type
Shaft-driven gear type
Forward Gears
6
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
71.7
Width (in)
39
Height (in)
42.9
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
Independent with electric clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 (2WD)
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
23
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/Turf
Manufacture - End Year
1997
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open Operator Station
Starter Type
Electric
Brake Type
Internal Expanding
Hydraulic System Type
-
