Cub Cadet AGS 2130

Last Updated: June 2024

Overview

The Cub Cadet AGS 2130 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 1994 to 1999. The Cub Cadet AGS 2130 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven gear type transmission with 6 forward and reverse gears.

Key Specifications

Category: Lawn and Garden

Power Output: 12.5

Transmission: Shaft-driven gear type

Drive Type: 2WD

Operating Weight: 562.2

Fuel Type: Gasoline

Image Gallery

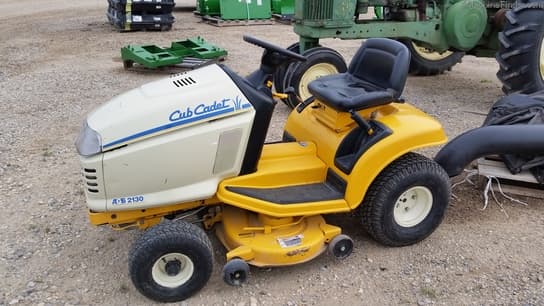

Cub Cadet AGS 2130 Tractor

Cub Cadet AGS 2130 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Average

Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: Kohler Command CH12.5
Cooling Type: Air-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 1
Displacement (ci): 24.3
Bore (in): 3.43
Stroke (in): 2.64
Rated RPM: 3600
Power Output (hp): 12.5

Transmission

Type: Shaft-driven gear type
Forward Gears: 6
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 71.7
Width (in): 44.9
Height (in): 41.7
Operating Weight (lb): 562.2

Power Take-Off (PTO)

PTO Type: Independent with electric clutch
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 20
Rear Tire Width (in): 9
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1999
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station
Starter Type: Electric Starter
Brake Type: Internal expanding
Hydraulic System Type: -
