Cub Cadet 7304

Last Updated: June 2024

Overview

The Cub Cadet 7304 is a compact utility tractor, equipped with a powerful 30hp, 3-cylinder, turbocharged diesel engine manufactured by Daihatsu. With a displacement of 58.1 cubic inches and a rated RPM of 3600, this engine offers impressive performance. Cooling is managed by a liquid cooling system with a capacity of 5.3 quarts. The tractor’s chassis features a 4x4 MFWD drive type with a 4WD system. Its hydrostatic transmission system ensures smooth gear changes with infinite (2-range) forward and reverse gears. The steering is hydrostatic power, ensuring precise control. At a length of 91 inches, a width of 48 inches, and height of 56 inches, the tractor offers a compact size without compromising on power or functionality. The tractor’s weight stands at 1730 lbs. The hydraulic system is an Open Center Gear Pump type. It features Rear Type I hitch system.

Key Specifications

Category: Utility

Power Output: 30

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1730

Fuel Type: Diesel

Image Gallery

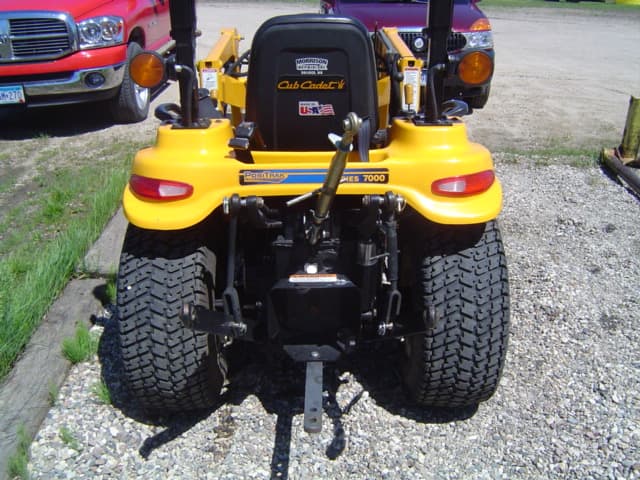

Cub Cadet 7304 Tractor

Cub Cadet 7304 vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Operating Weight

Below Average

Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daihatsu
Model: DM950D
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 58.1
Bore (in): 2.835
Stroke (in): 3.071
Rated RPM: 3600
Power Output (hp): 30

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 91
Width (in): 48
Height (in): 56
Operating Weight (lb): 1730

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 5.3
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear Type I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: Open Center Gear Pump
