Cub Cadet 7300

Last Updated: June 2024

Overview

The Cub Cadet 7300 tractor is a robust machine powered by a 3-cylinder Mitsubishi diesel engine. The engine is liquid-cooled and uses direct injection as the induction type, ensuring efficient burning of fuel. The impressive 30 horsepower engine boasts a displacement of 91.29 ci and utilizes a partially synchronized gear transmission system with 9 forward and 3 reverse gears. This tractor has a strong, compact build with dimensions of 115 inches in length, 54 inches in width, and a height of 84.3 inches. The Cub Cadet 7300 is emanates versatility with its weight of 2370 lbs. The tractor's rear type I hitch is strategically positioned for effective tow and haul applications.

Key Specifications

Power Output: 30

Transmission: Partially synchronized gear

Operating Weight: 2370

Fuel Type: Diesel

Image Gallery

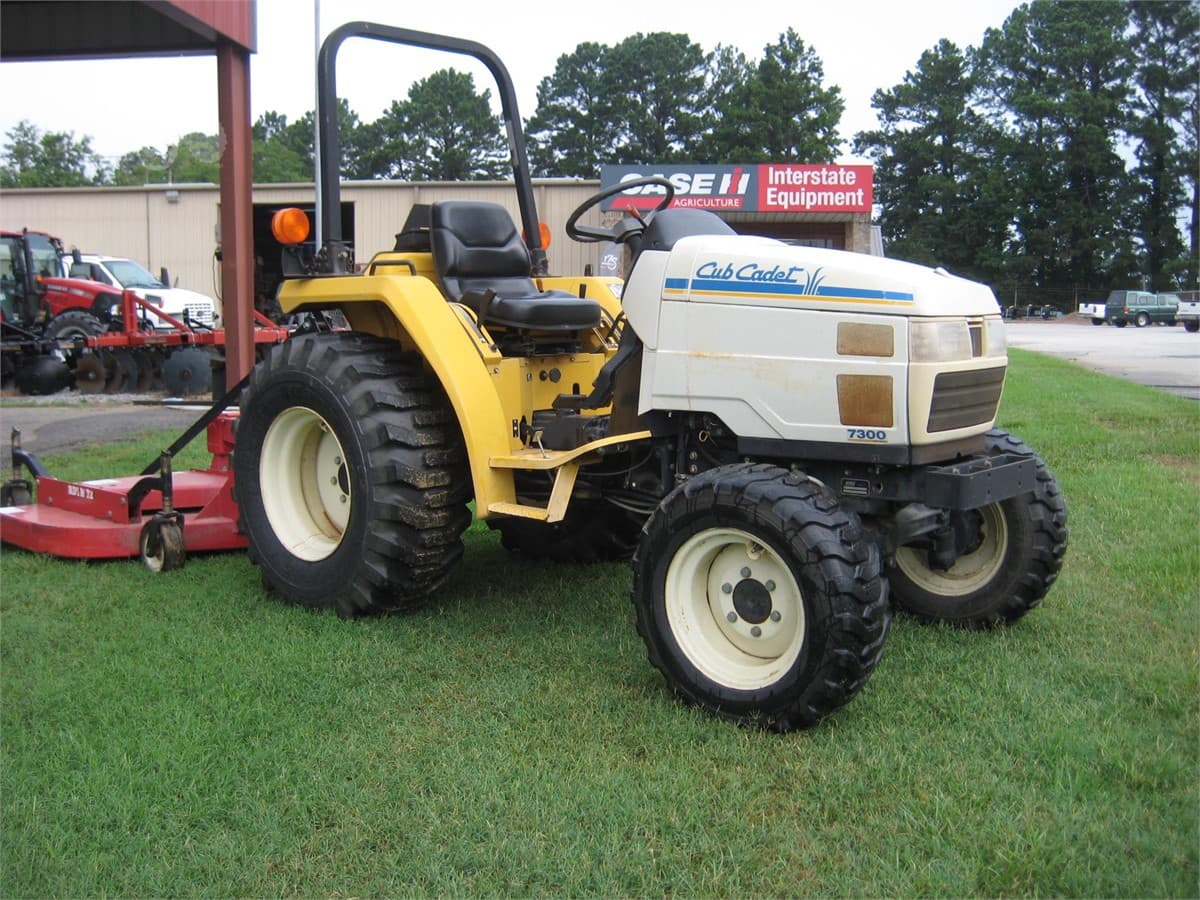

Cub Cadet 7300 Tractor

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Direct Injection
Cylinders: 3
Displacement (ci): 91.29
Bore (in): 3.307
Stroke (in): 3.543
Rated RPM: 2750
Power Output (hp): 30

Transmission

Type: Partially synchronized gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 115
Width (in): 54
Height (in): 84.3
Operating Weight (lb): 2370

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 6.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Rear Type I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: Open Center
