Cub Cadet 7275

Last Updated: June 2024

Overview

The Cub Cadet model 7275 is a compact utility tractor derived from Mitsubishi. The tractor includes a Mitsubishi K3M engine detail, and features a 3-cylinder diesel engine, that is cooled using a liquid-cooled overhead valve (OHV). It has a 4x4 MFWD 4WD Chassis and a hydrostatic power steering system. Its operating weight is 2685 lbs and it is available with multiple tire types, including agricultural, lawn/turf, and industrial. It has a rear type I hitch which is ideal for various applications.

Key Specifications

Category: Utility

Power Output: 27

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2685

Fuel Type: Diesel

Image Gallery

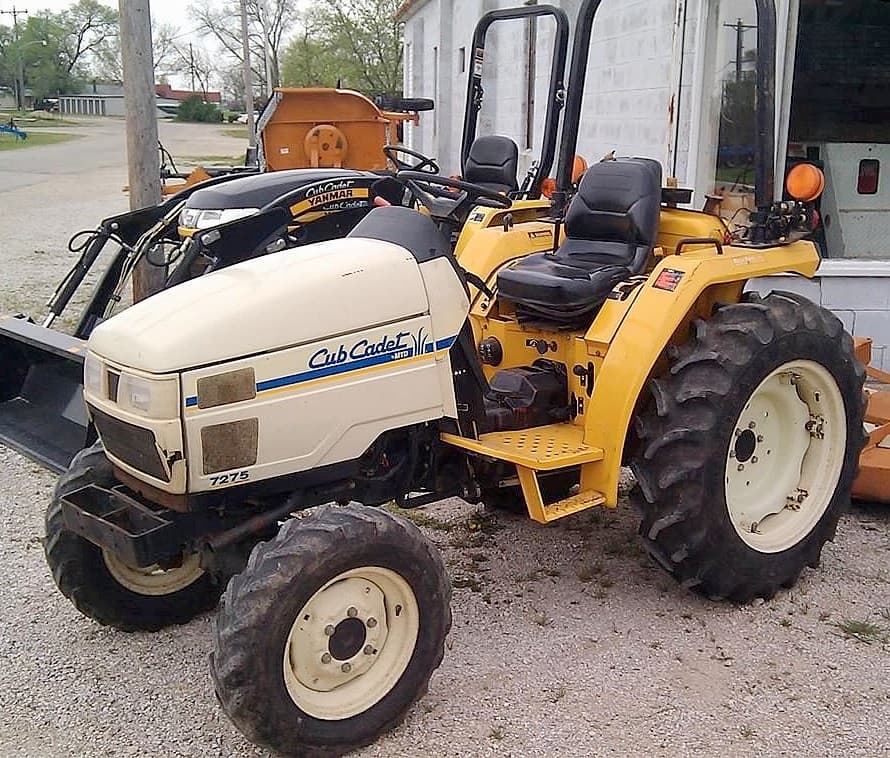

Cub Cadet 7275 Tractor

Cub Cadet 7275 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Operating Weight

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: K3M
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: OHV (Overhead Valve)
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 91.3
Bore (in): 3.307
Stroke (in): 3.543
Rated RPM: 2500
Power Output (hp): 27

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 115
Width (in): 54
Height (in): 84.3
Operating Weight (lb): 2685

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 6.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag/Lawn/Turf/Industrial
Manufacture - End Year: -
Hitch Type: Rear Type I
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: With ROPS
Starter Type: Electric (12 volts)
Brake Type: -
Hydraulic System Type: Open Center
